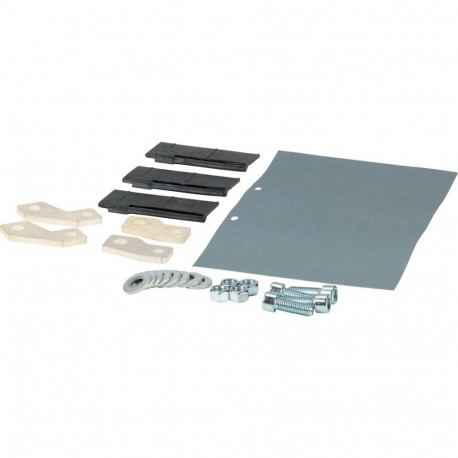

PN/N3-4-XKV70-SK 109060 EATON ELECTRIC Connection width extension, 4p, short
PN/N3-4-XKV70-SK
109060
EATON - MOELLER
1 Pcs.
Automation > Connection vane/phase spreader
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed to expand terminal layout options in heavy electrical installations, the PN/N3-4-XKV70-SK 109060 EATON ELECTRIC Connection width extension, 4p, short allows panel builders to adapt switchgear spacing for oversized conductors. Busbar and connection extensions are widely deployed in industrial control panels to resolve alignment challenges and ensure proper clearance between phases. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable for number of poles (EF001589): 4
More info
▲Delivery program
Type contains parts for a terminal located at top or bottom for3 or 4 pole circuit-breakers.
Central drill holes, e.g. for up to 2 cable lugs per phase.
Can be fitted to circuit-breaker with screw termination
Phase isolator supplied.
Distance between pole centres with NZM3(-4)-XKV70: 70 mm
Drill hole available for control cable.
Connection terminals NZM3(‐4)‐XK300 and NZM3(‐4)‐XK22X21 can be installed.
