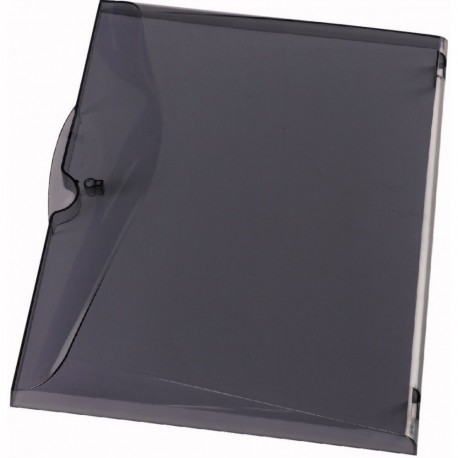

EATON - MOELLER BCZ-A-TT-1/13 BCZ-A-TT-1/13 101582 EATON ELECTRIC Plastic door, transparent, for 1-row distribution board View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCZ-A-TT-1/13 101582 EATON ELECTRIC Plastic door, transparent, for 1-row distribution board

BCZ-A-TT-1/13

101582

EATON - MOELLER

1 Pcs.

Plastic door, transparent, for 1-row distribution board Transparent plastic door for BC-A surface-mounted compact distribution board, 1 rows, replacement purpose BC-A

Automation > Door/operating panel (switchgear cabinet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The BCZ-A-TT-1/13 Eaton Moeller plastic door is a protective enclosure cover commonly mounted on standard distribution boards to shield modular electrical devices from dust and accidental contact.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Stop door
  • Version as glazed door (EF006966): Yes
  • Width (EF000008): 260 mm
  • Height (EF000040): 145 mm
  • Depth (EF000049): 210 mm
  • EMC-version (EF001062): Yes
  • Material (EF002169): Plastic
  • Degree of protection (IP) (EF005474): IP40

More info

▲
Technical data ETIM 6.0
Cabinet enclosures (EG000011) / Door/operating panel (switchgear cabinet) (EC000747)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Door (electrical cabinet) / Door/operating panel (enclosure) ([email protected] [ACN614008])
Model
Stop door
Version as glazed door
Yes
Version as door for disconnecting switch interlocking
No
Width
mm 242
Height
mm 188
Depth
mm 29.66
EMC-version
Yes
Material
Plastic
Type of surface
-
Colour
-
Degree of protection (IP)
IP40

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
