View larger
Images are for illustrative purposes only. Please refer to data sheet for details

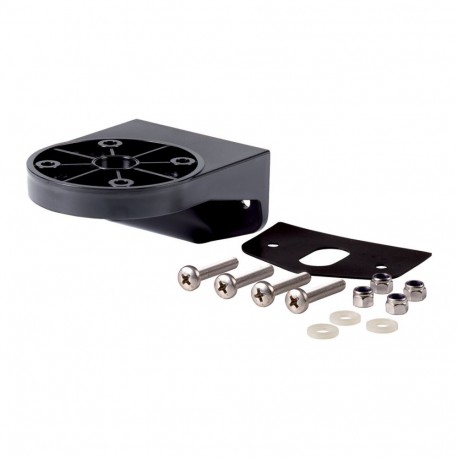

SL7/4-FW 171446 Y7-171446 EATON ELECTRIC Plastic angle bracket for vertical installation
SL7/4-FW
171446
Y7-171446
EATON - MOELLER
1 Pcs.
Plastic angle bracket for vertical installation
SL7/4-FW
Eaton Moeller® series SL7 Plastic angle bracket for vertical installation
Plastic mounting bracket, vertical mounting
Automation > Wall bracket for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series SL7 Accessory Plastic mounting bracket
Catalog Number
171446
Model Code
SL7/4-FW
EAN
4015081677764
Product Length/Depth
90 mm
Product Height
45 mm
Product Width
70 mm
Product Weight
0.061 kg
Compliances
CE Marked
Certifications
UL 508
CSA Certified
UL Listed
cULus Listed
UL Listed file E29184
CSA Class No. NKCR7
CSA Std. C22.2 No. 14-10
CSA Std. C22.2 No. 94-91
IEC Rated
CE
UL report applies to both US and Canada
UL Category Control No.: NKCR
Certified by UL for use in Canada
IEC/EN 60947-5-1
UL
CSA-C22.2 No. 94-91
UL File No.: E29184
CSA Class No.: NKCR7
CSA-C22.2 No. 14-10
CSA Certified
UL Listed
cULus Listed
UL Listed file E29184
CSA Class No. NKCR7
CSA Std. C22.2 No. 14-10
CSA Std. C22.2 No. 94-91
IEC Rated
CE
UL report applies to both US and Canada
UL Category Control No.: NKCR
Certified by UL for use in Canada
IEC/EN 60947-5-1
UL
CSA-C22.2 No. 94-91
UL File No.: E29184
CSA Class No.: NKCR7
CSA-C22.2 No. 14-10
Features & Functions
Color
Black
General
Accessories
Fixing screws for base modules included with supplied equipment.
Connection to SmartWire-DT
No
Degree of protection
NEMA 4
NEMA 13
NEMA 4X
NEMA 13
NEMA 4X
Material
Plastic
Mounting Method
Wall
Product Category
Accessories
Type
Accessory
Used with
Used with SL4-PIB, SL7-CB
Climatic environmental conditions
Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Wall mounting |
| Colour (EF000007) | Black |
