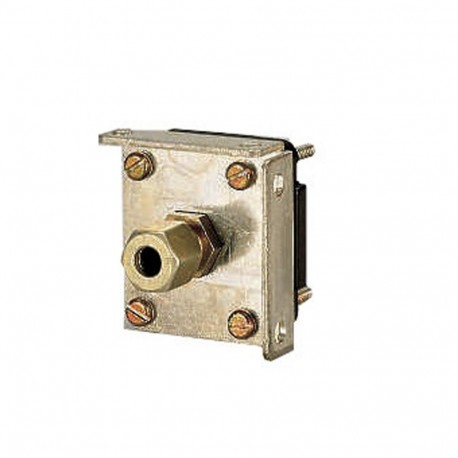

EATON - MOELLER +E8-MCS +E8-MCS 001624 EATON ELECTRIC Pipe fitting, cutting ring. Can only be sold assembled. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+E8-MCS 001624 EATON ELECTRIC Pipe fitting, cutting ring. Can only be sold assembled.

+E8-MCS

001624

-

EATON - MOELLER

1 Pcs.

Pipe fitting, cutting ring. Can only be sold assembled. Connection to pipe with cutting ring Pipe fitting, cutting ring Accessories pressure switch, for MCS, MCSN

Automation > Accessories/spare parts for low-voltage switch technology
Position Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller pipe fitting cutting ring (+E8-MCS) is a specialized connection technique component typically used in pneumatic and hydraulic fluid systems to create leak-proof mechanical seals on tubing. These precision rings bite securely into pipe walls under hydraulic pressure to maintain structural integrity in industrial fluid power applications.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of accessory/spare part (EF000215): Connection technique
  • Accessory (EF013236): Yes
  • Spare part (EF013237): No

More info

▲
Pipe fitting, cutting ring
Accessories pressure switch, for MCS, MCSN

General specifications
Product name
Eaton Moeller® series MCS Accessory Tube Fitting
Part no.
+E8-MCS
EAN
4015080016243
Product Length/Depth
100 millimetre
Product height
43 millimetre
Product width
90 millimetre
Product weight
0.16 kilogram
Certifications
CSA File No.: 012528
CSA
CSA-CC22.2 No. 14
CSA Class No.: 3211-06
Product Tradename
MCS
Product Type
Accessory
Product Sub Type
Tube Fitting
Catalog Notes
Article no. for ordering with basic unit
General information
Accessory/spare part type
Connection technique
Product category
Accessories
Type
Compression fitting
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Accessories/spare parts for low-voltage switch technology (EC002498)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Component for low-voltage switching technology (accessories) (ecl@ss13-27-37-13-92 [AKN570018])
Type of accessory/spare part
Connection technique
Accessory
Yes
Spare part
No
