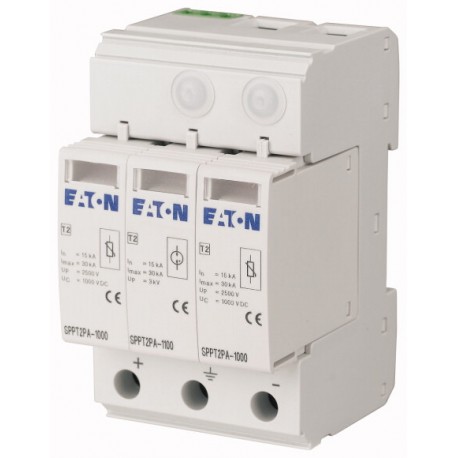

SPPT2PA-1000-2+1PE-AX 132665 EATON ELECTRIC Plug-in surge arrester with auxiliary contact, 1000 V DC, 2+Npol..
SPPT2PA-1000-2+1PE-AX
132665
EATON - MOELLER
1 Pcs.
Plug-in surge arrester with auxiliary contact, 1000 V DC, 2+Npole, non-earthed
Test class II according to IEC 61643-1, SPD part no. T2 according to EN 61643-11, part no. SPPT2PA-...-AX: version with auxiliary contact for remote messages defective SPD insert
Automation > Surge protection device for power supply systems
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Delivery program
Product range | DC overvoltage protection | ||
Products | Surge arresters | ||
Application field | Residential buildings Utility buildings Open areas | ||
Description | pluggable With auxiliary contact | ||
Connection | For ungrounded systems | ||
Maximum uninterrupted voltage | Uc | V | 1000 |
Technical data ETIM 7.0
| Earthing, lightning and surge protection (EG000021) / Surge protection device for power supply systems (EC000941) | |||
| Electric engineering, automation, process control engineering / Protection installation, device (electric) / Surge protection device (inner lightning protection) / Surge protection device for power supply systems ([email protected] [ACN278011]) | |||
System configuration DC | No | ||
System configuration IT | Yes | ||
System configuration TN | No | ||
System configuration TN-C | No | ||
System configuration TN-C-S | No | ||
System configuration TN-S | No | ||
System configuration TT | No | ||
System configuration other | No | ||
Number of conductors (without earthing) | |||
Nominal discharge surge current (8/20) | kA | 15 | |
Nominal voltage AC | V | 0 | |
Nominal voltage DC | V | 1000 | |
Short-circuit breaking capacity (Isccr) | kA | ||
Max. continuous voltage AC | V | 0 | |
Max. discharge surge current (8/20) | kA | ||
Max. continuous voltage DC | V | 1000 | |
Mounting method | DIN rail (top hat rail) 35 mm | ||
Construction size | 3 modular spacing | ||
Max. PV-voltage | V | 1050 | |
Voltage protection level | kV | 5 | |
Max. conductor cross section solid (solid, stranded) | mm² | 25 | |
Max. conductor cross section flexible (fine-strand) | mm² | 35 | |
Voltage protection level L-N | kV | 0 | |
Voltage protection level N-PE | kV | 0 | |
With remote signalling contact | No | ||
Integrated backup fuse | No | ||
Signalling at the device | None | ||
Category type 2 | Yes | ||
Degree of protection (IP) | IP20 | ||
| Feature Name | Feature Value |
|---|---|
| System configuration DC (EF009926) | No |
| System configuration IT (EF009927) | Yes |
| System configuration TN (EF009928) | No |
| System configuration TN-C (EF009929) | No |
| System configuration TN-C-S (EF009933) | No |
| System configuration TN-S (EF009930) | No |
| System configuration TT (EF009931) | No |
| System configuration other (EF009932) | No |
| Number of conductors (without earthing) (EF001148) | 3 |
| Nominal discharge surge current (8/20) (EF004214) | 15 kA |
| Nominal voltage AC (EF004220) | 0 V |
| Nominal voltage DC (EF004221) | 1000 V |
| Max. continuous voltage AC (EF004198) | 0 V |
| Max. continuous voltage DC (EF004777) | 1000 V |
| Max. PV-voltage (EF008795) | 1050 V |
| Voltage protection level (EF003525) | 5 kV |
| Voltage protection level L-N (EF004236) | 0 kV |
| Voltage protection level N-PE (EF008796) | 0 kV |
| Integrated short-circuit protection (EF016000) | No |
| Integrated backup fuse (EF008797) | No |
| Leakage-current free (EF016002) | No |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Construction size (EF002566) | 3 modular spacing |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 25 mm² |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 35 mm² |
| With remote signalling contact (EF000422) | No |
| Signalling at the device (EF004241) | None |
| Category type 2 (EF004230) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
