EATON - MOELLER NZM2-4-XKP NZM2-4-XKP 119865 Y7-119865 EATON ELECTRIC Phase isolator, 4p, size 2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NZM2-4-XKP 119865 Y7-119865 EATON ELECTRIC Phase isolator, 4p, size 2

NZM2-4-XKP

119865

Y7-119865

EATON - MOELLER

1 Pcs.

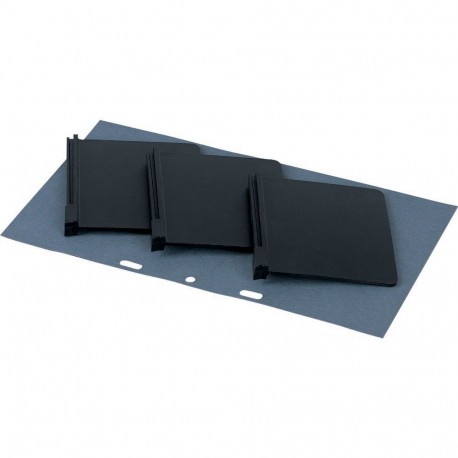

Phase isolator, 4p, size 2 NZM2-4-XKP Eaton Moeller series NZM - Molded Case Circuit Breaker. Phase isolator, 4p, size 2 Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: model contains parts, including insulating plate for mounting plate, for a terminal located at top or bottom for 3 or 4 pole circuit-breakers. Can not be combined with connection on rear NZM1/2(-4)-XKR. insulation protection up to a rated operating voltage U e of 415 VAC when minimum distances are not maintained. Can be used for: NZM2-4, PN2-4, N(S)2-4

Automation > Phase separation plate for power circuit breaker
Circuit Breakers NZM
