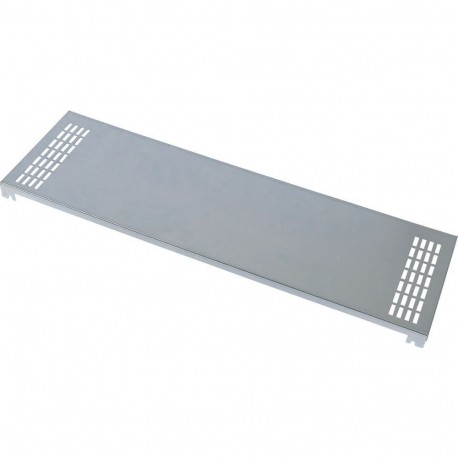

EATON - MOELLER XPFMM08 XPFMM08 171664 Y7-171664 EATON ELECTRIC Partition for use between component mounting area and component moun.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPFMM08 171664 Y7-171664 EATON ELECTRIC Partition for use between component mounting area and component moun..

XPFMM08

171664

Y7-171664

EATON - MOELLER

1 Pcs.

Partition for use between component mounting area and component mounting area outgoer section for fixed installation equipment, for T=275mm XPFMM08 Eaton xEnergy Main LV systems LV switchgear. Component mounting area partition for box solutions for a width of 800 mm, normal installation depth Component mounting area partition for box solutions for a width of 800 mm, normal installation depth

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller partition for use between component mounting area and component mounting area, model XPFMM08, is engineered to divide interior spaces within industrial enclosures. Such panels ensure proper compartmentalization, isolate functional zones, and enhance safety compliance in complex electrical distribution configurations.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 800 mm
  • Suitable for enclosure building depth (EF000327): 275 mm
  • Width (EF000008): 734 mm
  • Height (EF000040): 32 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Individual part
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
171664
Model Code
XPFMM08
EAN
4015081680146
Product Length/Depth
219 mm
Product Height
32 mm
Product Width
734 mm
Product Weight
1.375 kg
Compliances
RoHS conform

Product specifications

Construction type
Individual part
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
275 mm
Suitable for enclosure building width
800 mm
Material
Steel
Suitable for
Internal separation form 3a
Internal separation form 4a
Internal separation form 2b
Internal separation form 3b
Internal separation form 4b
Internal separation form 2a
