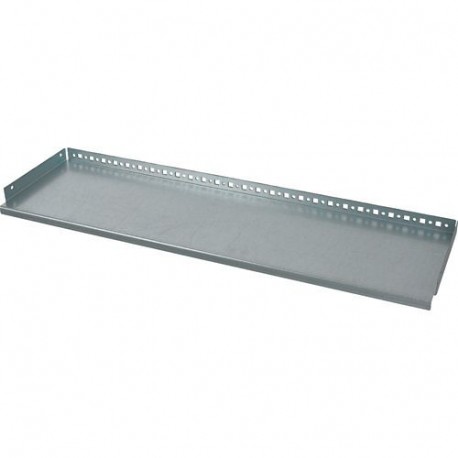

EATON - MOELLER XPMMB0603 XPMMB0603 166239 Y7-166239 EATON ELECTRIC Partition, devices-/devices area, for W 600mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPMMB0603 166239 Y7-166239 EATON ELECTRIC Partition, devices-/devices area, for W 600mm

XPMMB0603

166239

Y7-166239

EATON - MOELLER

1 Pcs.

Partition, devices-/devices area, for W=600mm XPMMB0603 Eaton xEnergy Main LV systems LV switchgear. Partition, devices-/devices area, for W=600mm Accessory for XP sections, internal Partitions, component mounting area/component mounting area partition (for IZMX40), EVEN/OPPO/Fest + is used, withdrawable only if there is a section depth of 800 mm, shape 4 in OPPO for section depths of 600 mm, section width 600 mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Partition, devices-/devices area, for W 600mm from Eaton Moeller (XPMMB0603) functions as a structural separator placed between adjacent device zones inside modular electrical cabinets. Switchgear assemblers rely on these kits to maintain organized layouts, isolate equipment groupings, and reinforce internal safety ratings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 254 mm
  • Height (EF000040): 40 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): No
  • For internal separation form 2b (EF009587): No
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
166239
Model Code
XPMMB0603
EAN
4015081627660
Product Length/Depth
510 mm
Product Height
40 mm
Product Width
254 mm
Product Weight
1.15 kg
Compliances
Contact Manufacturer
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
600 mm
Material
Steel
Suitable for
Internal separation form 3b
Internal separation form 3a
Internal separation form 4b
Internal separation form 4a

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
