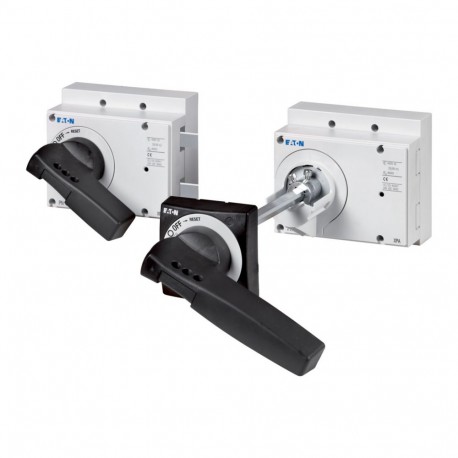

PN3-XPA 283473 Y7-283473 EATON ELECTRIC Paralleling mechanism
PN3-XPA
283473
Y7-283473
EATON - MOELLER
1 Pcs.
Paralleling mechanism
PN3-XPA
Eaton Moeller series NZM - Molded Case Circuit Breaker. Paralleling mechanism, 3
Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: simultaneous actuation of 2 PN switch-disconnectors of the same type mounted side-by-side. Not UL/CSA approved. 1 × rotary handle on switch (not lockable) included as standard. 1 x door coupling rotary handle (not lockable) included as standard. not suitable for use as a main switch can be used for: PN3(-4) + PN3(-4)
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller series NZM mounting accessory
Catalog Number
283473
Model Code
PN3-XPA
EAN
4015082834739
Product Length/Depth
320 mm
Product Height
60 mm
Product Width
105 mm
Product Weight
1.2 kg
Compliances
IEC
RoHS conform
RoHS conform
Product specifications
Type
AccessoryAccessory, otherParalleling mechanism
Special features
Simultaneous actuation of 2 PN switch-disconnectors of the same type mounted side-by-sidenot UL/CSA approved
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Color
Black
Fitted with:
Padlock
Frame
PN3
Used with
PN3(-4) + PN3(-4)
Suitable for
Switch disconnector
Power circuit breaker
Power circuit breaker
Degree of protection / NEMA enclosure type
Other
| Feature Name | Feature Value |
|---|---|
| With restart blockage (EF004054) | No |
| With key lock (EF026057) | No |
| Padlock locking (EF001163) | Yes |
| Colour (EF000007) | Black |
| Suitable for emergency stop (EF001433) | No |
| With extension shaft (EF001434) | No |
| Suitable for power circuit breaker (EF005863) | Yes |
| Suitable for switch disconnector (EF007252) | Yes |
| Degree of protection (NEMA) (EF011959) | Other |
