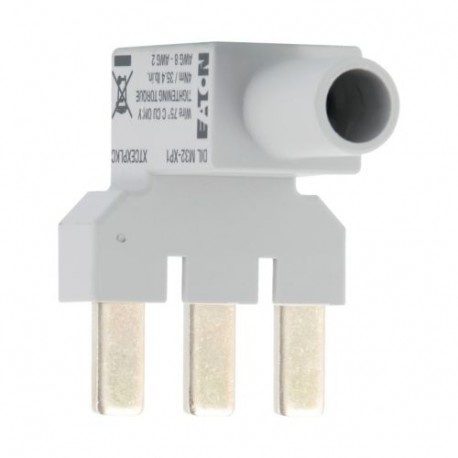

DILM32-XP1 281194 Y7-281194 EATON ELECTRIC Paralleling link, for DILM1732
DILM32-XP1
281194
Y7-281194
EATON - MOELLER
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller DILM32-XP1 paralleling link, for DILM1732 bridges adjacent poles on contactors to effectively double the current-carrying capacity for single-phase switching duties. Paralleling links provide a standard factory-approved method for adapting standard three-phase contactors for high-load single-phase applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of accessory/spare part (EF000215): Connecting bridge
- Accessory (EF013236): Yes
- Spare part (EF013237): No
More info
▲General specifications
CSA-C22.2 No. 14-05
UL 508
UL File No.: E29096
CSA File No.: 012528
CE
CSA Class No.: 3211-03
UL Category Control No.: NLDX
CSA
UL
General
Climatic environmental conditions
Terminal capacities
1 x (16 - 35) mm²
16 mm², solid
Short-circuit rating
125 A, max. Fuse, SCCR (UL/CSA)
125 A, max. CB, SCCR (UL/CSA)
10/65 kA, CB, SCCR (UL/CSA)
50/32 A, max. CB, SCCR (UL/CSA)
125/70 A, Class J, max. Fuse, SCCR (UL/CSA)
125/125 A, Class J, max. Fuse, SCCR (UL/CSA)
10/100 kA, Fuse, SCCR (UL/CSA)
50/32 A, max. CB, SCCR (UL/CSA)
