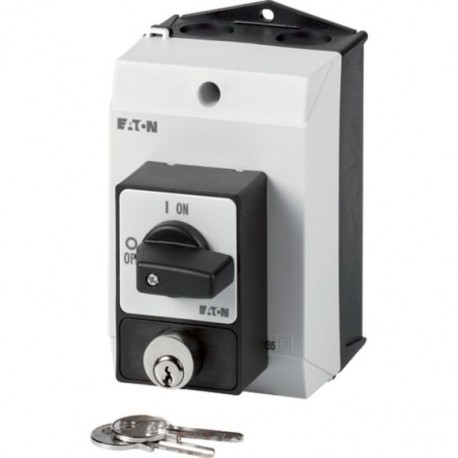

T0-2-1/I1/SVA(S) 207084 Y7-207084 EATON ELECTRIC Panic switches, 3 pole, 20 A, Cylinder lock SVA, front plat..
T0-2-1/I1/SVA(S)
207084
Y7-207084
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
T0-2-1/I1/SVA(S) Eaton Moeller panic switch functions as a specialized safety control device designed to instantly shut down machinery during hazardous situations. These lockable control switches are typically mounted on machine exteriors or operator stations to provide immediate emergency intervention capabilities.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
More info
▲General specifications
VDE 0660
IEC/EN 60204
IEC/EN 60947-3
