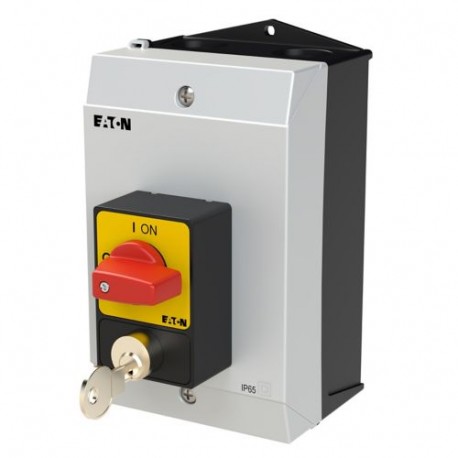

EATON - MOELLER P1-32/I2/SVA(S)-RT P1-32/I2/SVA(S)-RT 207327 Y7-207327 EATON ELECTRIC Panic switches, 3 pole, 32 A, Cylinder lock SVA, front pl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/I2/SVA(S)-RT 207327 Y7-207327 EATON ELECTRIC Panic switches, 3 pole, 32 A, Cylinder lock SVA, front pl..

P1-32/I2/SVA(S)-RT

207327

Y7-207327

EATON - MOELLER

1 Pcs.

Panic switches, 3 pole, 32 A, Cylinder lock SVA, front plate 0-1, 90 °, maintained, surface mounting, P P1-32/I2/SVA(S)-RT Eaton Moeller® series P1 Panic switches, P1, 32 A, surface mounting, 3 pole, with red thumb grip and yellow front plate, Cylinder lock SVA Panic switch, Product range: Switch with locking mechanism, Part group reference: P1, Stop Function: Emergency switching off function, with red thumb grip and yellow front plate, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., with two keys, 3 pole, locking arrangement: Cylinder lock SVA, Notes: If the key is withdrawn in position 1 the switch can be switched off but not on again without the key., Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW , Rated uninterrupted current: Iu = 32 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Applied in industrial machinery control, this Eaton Moeller P1-32/I2/SVA(S)-RT panic switch secures operator panels by offering dependable manual interruption during critical moments. Such components safeguard automated processes by allowing immediate physical power isolation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 13 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Panic switch
Catalog Number
207327
Model Code
P1-32/I2/SVA(S)-RT
EAN
4015082073275
Product Length/Depth
126 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.544 kg
Certifications
VDE 0660
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
