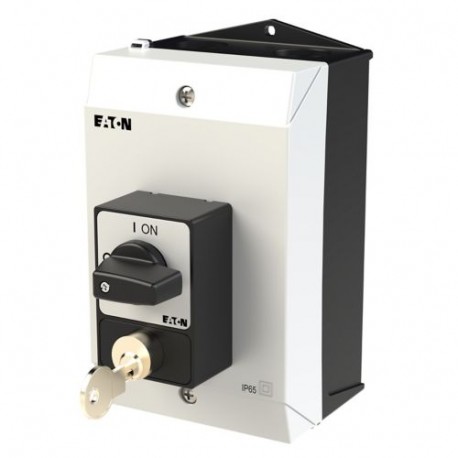

P1-25/I2/SVA(S) 207305 Y7-207305 EATON ELECTRIC Panic switches, 3 pole, 25 A, Cylinder lock SVA, front plate..
P1-25/I2/SVA(S)
207305
Y7-207305
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number P1-25/I2/SVA(S) is a specialized panic switch equipped with a cylinder lock for secure panel integration. Industrial control environments utilize locking switches to prevent unauthorized operation and ensure rapid safety shutdowns when necessary.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 25 A
- Rated permanent current at AC-23, 400 V (EF011777): 25 A
- Rated permanent current at AC-21, 400 V (EF009165): 25 A
- Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
- Rated short-time withstand current lcw (EF007050): 0.64 kA
- Rated operation power at AC-23, 400 V (EF007027): 13 kW
- Switching power at 400 V (EF009166): 13 kW
- Conditioned rated short-circuit current Iq (EF001444): 80 kA
More info
▲General specifications
IEC/EN 60947
IEC/EN 60204
IEC/EN 60947-3
