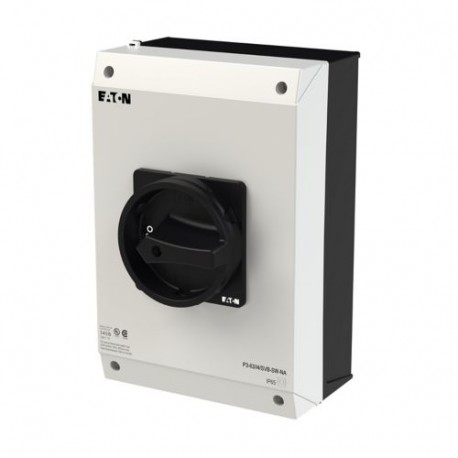

EATON - MOELLER P3-63/I4/SVB-SW-NA P3-63/I4/SVB-SW-NA 255898 Y7-255898 EATON ELECTRIC Main switch, P3, 63 A, surface mounting, 3 pole, STOP fun.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/I4/SVB-SW-NA 255898 Y7-255898 EATON ELECTRIC Main switch, P3, 63 A, surface mounting, 3 pole, STOP fun..

P3-63/I4/SVB-SW-NA

255898

Y7-255898

EATON - MOELLER

1 Pcs.

Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, UL/CSA P3-63/I4/SVB-SW-NA Eaton Moeller® series P3 Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, UL/CSA Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, Stop Function: STOP function, With black rotary handle and locking ring, Notes: UL/CSA, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Surface mounting configurations for operational control panels utilize devices such as the Eaton Moeller P3-63/I4/SVB-SW-NA main switch. This hardware controls motor and electrical system power feeds to ensure secure maintenance shutdowns.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.26 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 Main switch
Catalog Number
255898
Model Code
P3-63/I4/SVB-SW-NA
EAN
4015082558987
Product Length/Depth
139 mm
Product Height
240 mm
Product Width
160 mm
Product Weight
1.065 kg
Certifications
CSA File No.: 012528
UL
CE
CSA Class No.: 3211-05
UL 60947-4-1
VDE 0660
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
UL Category Control No.: NLRV
UL File No.: E36332
IEC/EN 60204
CSA
IEC/EN 60947
IEC/EN 60947-3
