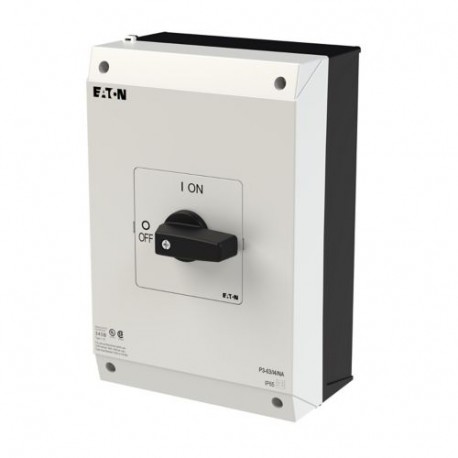

EATON - MOELLER P3-63/I4-NA P3-63/I4-NA 255896 Y7-255896 EATON ELECTRIC On-Off switch, P3, 63 A, surface mounting, 3 pole, with black th.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/I4-NA 255896 Y7-255896 EATON ELECTRIC On-Off switch, P3, 63 A, surface mounting, 3 pole, with black th..

P3-63/I4-NA

255896

Y7-255896

EATON - MOELLER

1 Pcs.

On-Off switch, P3, 63 A, surface mounting, 3 pole, with black thumb grip and front plate, UL/CSA P3-63/I4-NA Eaton Moeller® series P3 On-Off switch, P3, 63 A, surface mounting, 3 pole, with black thumb grip and front plate, UL/CSA On-Off switch, Product range: On-Off switch, Part group reference: P3, with black thumb grip and front plate, Notes: UL/CSA, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

On-Off switch, P3, 63 A, surface mounting, 3 pole, with black th.. by Eaton Moeller (P3-63/I4-NA) is a surface-mounted control switch utilized for manually connecting and disconnecting power to machinery and industrial automation lines. Rotary switches facilitate local operator control and safety isolation across manufacturing plants.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.26 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 On-off switch
Catalog Number
255896
Model Code
P3-63/I4-NA
EAN
4015082558963
Product Length/Depth
124 mm
Product Height
240 mm
Product Width
160 mm
Product Weight
1.002 kg
Certifications
UL Category Control No.: NLRV
VDE 0660
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
IEC/EN 60204
UL 60947-4-1
CSA Class No.: 3211-05
CE
CSA
CSA File No.: 012528
IEC/EN 60947-3
UL
IEC/EN 60947
UL File No.: E36332
