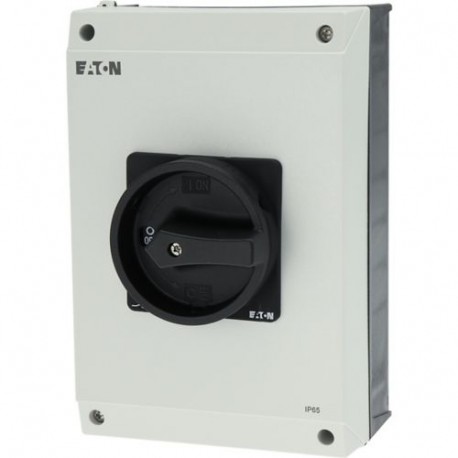

EATON - MOELLER P3-63/I4/MBS/SVB-SW/HI11 P3-63/I4/MBS/SVB-SW/HI11 182424 Y7-182424 EATON ELECTRIC Main switch, 3p+1S+1Ö,63 A,controlled stop function.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/I4/MBS/SVB-SW/HI11 182424 Y7-182424 EATON ELECTRIC Main switch, 3p+1S+1Ö,63 A,controlled stop function..

P3-63/I4/MBS/SVB-SW/HI11

182424

Y7-182424

EATON - MOELLER

1 Pcs.

Main switch, 3p+1S+1Ö,63 A,controlled stop function,lockable in the 0 (Off) position,surface mounting,hard knockout version,with mounting plate screen P3-63/I4/MBS/SVB-SW/HI11 Eaton Moeller® series P3 Main switch, P3, 63 A, surface mounting, 3 pole, 1 N/O, 1 N/C, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, with assembly sheet screen Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, Stop Function: STOP function, With black rotary handle and locking ring, Notes: with assembly sheet screen, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

P3-63/I4/MBS/SVB-SW/HI11 182424 Y7-182424 EATON ELECTRIC Main switch, 3p+1S+1Ö,63 A,controlled stop function.. is a main switch produced by Eaton Moeller to serve as a primary power disconnect device in control cabinets and machinery lines. Main switches ensure safe isolation of electrical installations during servicing and emergency events.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.26 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 Main switch
Catalog Number
182424
Model Code
P3-63/I4/MBS/SVB-SW/HI11
EAN
4015081773503
Product Length/Depth
139 mm
Product Height
240 mm
Product Width
160 mm
Product Weight
1.305 kg
Certifications
IEC/EN 60947
VDE 0660
IEC/EN 60204
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
