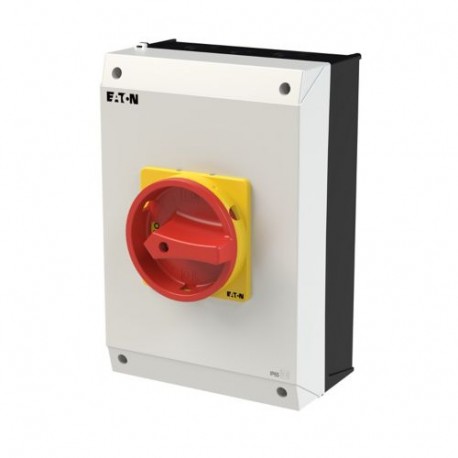

EATON - MOELLER P3-63/I4/MBS/SVB/HI11 P3-63/I4/MBS/SVB/HI11 182423 Y7-182423 EATON ELECTRIC Main switch, 3p+1S+1Ö,63 A,Emergency-Stop function,loc.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/I4/MBS/SVB/HI11 182423 Y7-182423 EATON ELECTRIC Main switch, 3p+1S+1Ö,63 A,Emergency-Stop function,loc..

P3-63/I4/MBS/SVB/HI11

182423

Y7-182423

EATON - MOELLER

1 Pcs.

Main switch, 3p+1S+1Ö,63 A,Emergency-Stop function,lockable in the 0 (Off) position,surface mounting,hard knockout version,with mounting plate screen P3-63/I4/MBS/SVB/HI11 Eaton Moeller® series P3 Main switch, P3, 63 A, surface mounting, 3 pole, 1 N/O, 1 N/C, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position, with assembly sheet screen Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: with assembly sheet screen, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

P3-63/I4/MBS/SVB/HI11 is an Eaton Moeller main switch featuring an integrated emergency-stop function and auxiliary contacts for secure power isolation in industrial environments. Enclosed main switches provide a dependable method to interrupt power feeds directly at machinery, safeguarding technical staff during servicing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.26 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 Main switch
Catalog Number
182423
Model Code
P3-63/I4/MBS/SVB/HI11
EAN
4015081773497
Product Length/Depth
139 mm
Product Height
240 mm
Product Width
160 mm
Product Weight
1.305 kg
Certifications
IEC/EN 60947-3
IEC/EN 60204
VDE 0660
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
