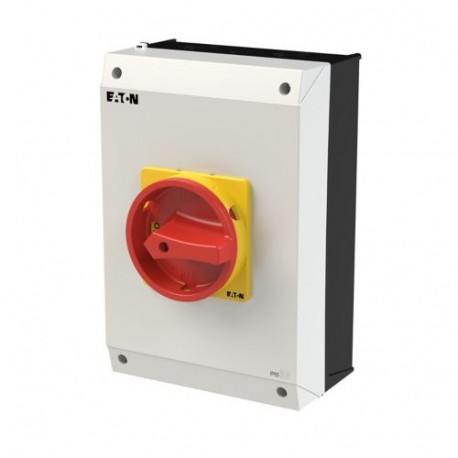

P3-63/I4/MBS/SVB 182421 Y7-182421 EATON ELECTRIC Main switch, 3p,63 A, Emergency-Stop function, lockable in ..
P3-63/I4/MBS/SVB
182421
Y7-182421
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller P3-63/I4/MBS/SVB is a main switch incorporating an emergency-stop function and a lockable actuator mechanism for enhanced operational safety. Housed switching units of this type are typically installed directly adjacent to industrial machinery to provide immediate power interruption when necessary. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Version as switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 63 A
- Rated permanent current at AC-23, 400 V (EF011777): 63 A
- Rated permanent current at AC-21, 400 V (EF009165): 63 A
- Rated operation power at AC-3, 400 V (EF001364): 30 kW
- Rated short-time withstand current lcw (EF007050): 1.26 kA
- Rated operation power at AC-23, 400 V (EF007027): 30 kW
- Switching power at 400 V (EF009166): 30 kW
- Conditioned rated short-circuit current Iq (EF001444): 100 kA
More info
▲General specifications
IEC/EN 60947
VDE 0660
IEC/EN 60204
