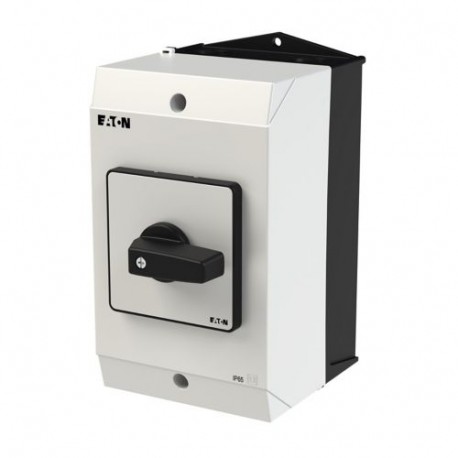

EATON - MOELLER P3-63/I3/N P3-63/I3/N 207355 Y7-207355 EATON ELECTRIC On-Off switch, +housing, 3p+N, 63A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/I3/N 207355 Y7-207355 EATON ELECTRIC On-Off switch, +housing, 3p+N, 63A

P3-63/I3/N

207355

Y7-207355

EATON - MOELLER

1 Pcs.

On-Off switch, +housing, 3p+N, 63A P3-63/I3/N Eaton Moeller® series P3 On-Off switch, +housing, 3p+N, 63A Main switch/switch-disconnector on-off according to IEC/EN 60947-3, 690V/63A, degree of protection Front IP65, black handle. Switch-disconnectors P3 have a very compact and robust design. The manual drive act directly to the connection of the contacts. The contacts are forced open when switching off. Design general: insulating material-surface mounting enclosure, flush mounting, rear mounting, IVS service distribution board mounting

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number P3-63/I3/N is an On-Off switch engineered for secure circuit control in industrial settings. Switches of this category provide manual isolation for machinery, allowing operators to safely disconnect power during maintenance or routine operational shutdowns.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.26 kA
  • Rated operation power at AC-23, 400 V (EF007027): 37 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 On-off switch
Catalog Number
207355
Model Code
P3-63/I3/N
EAN
4015082073558
Product Length/Depth
152 mm
Product Height
222 mm
Product Width
120 mm
Product Weight
0.948 kg
Certifications
IEC/EN 60947-3
IEC/EN 60947
IEC/EN 60204
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
