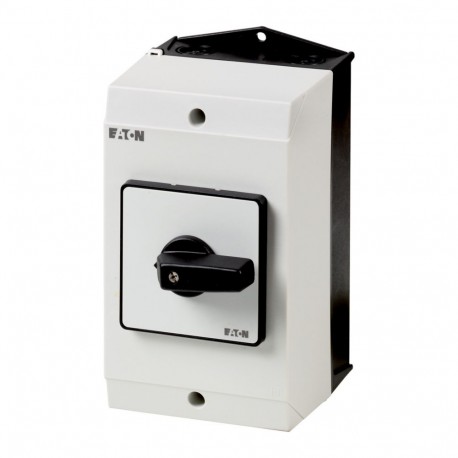

EATON - MOELLER P3-63/I3 P3-63/I3 207351 Y7-207351 EATON ELECTRIC On-Off switch, +housing, 3p, 63A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/I3 207351 Y7-207351 EATON ELECTRIC On-Off switch, +housing, 3p, 63A

P3-63/I3

207351

Y7-207351

EATON - MOELLER

1 Pcs.

On-Off switch, +housing, 3p, 63A P3-63/I3 Eaton Moeller® series P3 P3, 63 A, surface mounting Main switch/switch-disconnector on-off according to IEC/EN 60947-3, 690V/63A, degree of protection Front IP65, black handle. Switch-disconnectors P3 have a very compact and robust design. The manual drive act directly to the connection of the contacts. The contacts are forced open when switching off. Design general: insulating material-surface mounting enclosure, flush mounting, rear mounting, IVS service distribution board mounting

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 On-off switch
Catalog Number
207351
Model Code
P3-63/I3
EAN
4015082073510
Product Length/Depth
152 mm
Product Height
222 mm
Product Width
120 mm
Product Weight
0.918 kg
Compliances
CE

ETIM for 207351 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 63 A
Rated permanent current at AC-23, 400 V (EF011777) 63 A
Rated permanent current at AC-21, 400 V (EF009165) 63 A
Rated operation power at AC-3, 400 V (EF001364) 30 kW
Rated short-time withstand current lcw (EF007050) 1.26 kA
Rated operation power at AC-23, 400 V (EF007027) 37 kW
Switching power at 400 V (EF009166) 30 kW
Conditioned rated short-circuit current Iq (EF001444) 100 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Complete device in housing
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Toggle
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 120 mm
Height (EF000040) 222 mm
Depth (EF000049) 152 mm
