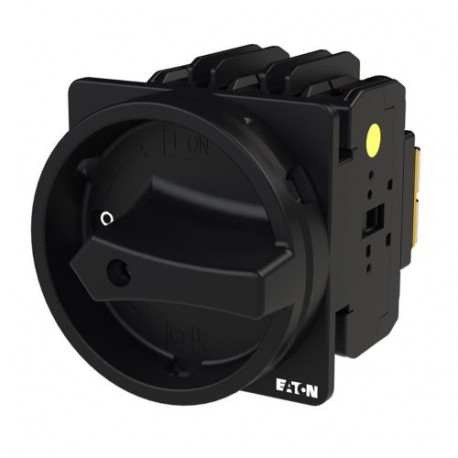

EATON - MOELLER P3-30/EA/SVB-SW-MCS P3-30/EA/SVB-SW-MCS 237893 Y7-237893 EATON ELECTRIC 001628 +R1/4"-MCSN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-30/EA/SVB-SW-MCS 237893 Y7-237893 EATON ELECTRIC 001628 +R1/4"-MCSN

P3-30/EA/SVB-SW-MCS

237893

Y7-237893

EATON - MOELLER

1 Pcs.

001628 +R1/4"-MCSN P3-30/EA/SVB-SW-MCS Eaton Moeller® series P3 Main switch, P3, 30 A, flush mounting, 3 pole, With black rotary handle and locking ring, Lockable in the 0 (Off) position, UL/CSA Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, With black rotary handle and locking ring, 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Rated uninterrupted current: Iu = 30 A, Standards: UL489

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 Main switch
Catalog Number
237893
Model Code
P3-30/EA/SVB-SW-MCS
EAN
4015082378936
Product Length/Depth
150 mm
Product Height
114 mm
Product Width
90 mm
Product Weight
0.374 kg
Certifications
UL
CSA
UL489
UL 489
UL File No.: E148671
CSA File No.: 1342868 (LR12528)

ETIM for 237893 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 480 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 30 A
Rated permanent current at AC-21, 400 V (EF009165) 0 A
Rated operation power at AC-3, 400 V (EF001364) 0 kW
Rated short-time withstand current lcw (EF007050) 0 kA
Rated operation power at AC-23, 400 V (EF007027) 0 kW
Switching power at 400 V (EF009166) 0 kW
Conditioned rated short-circuit current Iq (EF001444) 100 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) Yes
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Door coupling rotary drive
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 90 mm
Height (EF000040) 114 mm
Depth (EF000049) 150 mm
