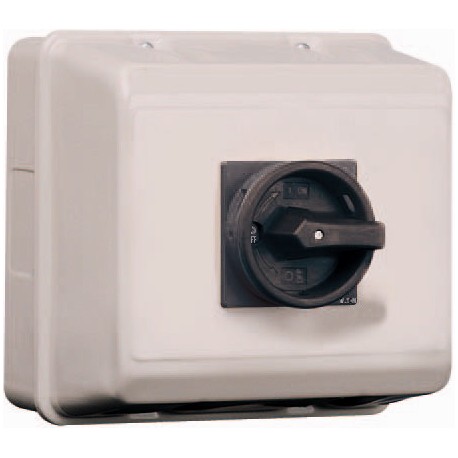

EATON - MOELLER P3-100/ST/SVB-SW P3-100/ST/SVB-SW 201717 EATON ELECTRIC Main switch, +steel enclosure, 3p, 100A, handle black, lockable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-100/ST/SVB-SW 201717 EATON ELECTRIC Main switch, +steel enclosure, 3p, 100A, handle black, lockable

P3-100/ST/SVB-SW

201717

EATON - MOELLER

1 Pcs.

Main switch, +steel enclosure, 3p, 100A, handle black, lockable General switch; 3-pole; 100a; Mounting stainless steel box; Lever Black; Lockable in the 0 position (OFF) Main switch/switch-disconnector on-off according to IEC/EN 60947-3, 690V/100A, steel sheet enclosure, degree of protection Front IP55, handle black with black locking collar lockable with 3 padlocks, switch-disconnectors P3 have a very compact and robust design. The manual drive act directly to the connection of the contacts. The contacts are forced open when switching off. Design general: insulating material-surface mounting enclosure, flush mounting, rear mounting, IVS service distribution board mounting

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Main switch, +steel enclosure, 3p, 100A, handle black, lockable
Main switch/switch-disconnector on-off according to IEC/EN 60947-3, 690V/100A, steel sheet enclosure, degree of protection Front IP55, handle black with black locking collar lockable with 3 padlocks, switch-disconnectors P3 have a very compact and robust design. The manual drive act directly to the connection of the contacts. The contacts are forced open when switching off. Design general: insulating material-surface mounting enclosure, flush mounting, rear mounting, IVS service distribution board mounting

Technical data ETIM 4.0

Version as switch disconnector compact
Yes
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
No
Version as emergency stop installation
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
100 A
Rated operation power AC-3, 400 V
37 kW
Rated operation power at AC-23, 400V
50 kW
Conditioned rated short-circuit current Iq
0 kA
Number of poles
3
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for ground mounting
No
Suitable for front mounting
No
Suitable for front mounting center
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
-
Interlockable
Yes
Connection type main current circuit
Screw connection
Degree of protection (IP), front side
IP65

Dimensions

115X090

ETIM for 201717 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Interlockable (EF006281) No
With pre-assembled cabling (EF016444) No
Width (EF000008) 185 mm
Height (EF000040) 185 mm
Depth (EF000049) 185 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
