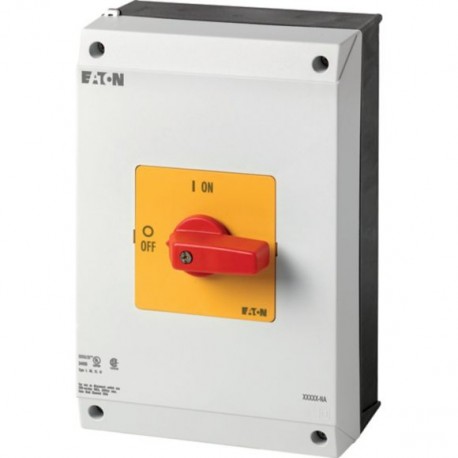

EATON - MOELLER P3-100/I5-RT-NA P3-100/I5-RT-NA 255905 Y7-255905 EATON ELECTRIC On-Off switch, P3, 100 A, surface mounting, 3 pole, Emergenc.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-100/I5-RT-NA 255905 Y7-255905 EATON ELECTRIC On-Off switch, P3, 100 A, surface mounting, 3 pole, Emergenc..

P3-100/I5-RT-NA

255905

Y7-255905

EATON - MOELLER

1 Pcs.

On-Off switch, P3, 100 A, surface mounting, 3 pole, Emergency switching off function, with red thumb grip and yellow front plate, UL/CSA P3-100/I5-RT-NA On-Off switch, Product range: On-Off switch, Part group reference: P3, Stop Function: Emergency switching off function, with red thumb grip and yellow front plate, Notes: UL/CSA, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An EATON ELECTRIC On-Off switch, P3, 100 A, surface mounting, 3 pole, Emergenc.. (P3-100/I5-RT-NA) is a heavy-duty manual controller designed for safe power interruption and emergency stop functions in industrial machinery. Surface-mounted disconnectors provide accessible local isolation directly adjacent to equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 37 kW
  • Rated short-time withstand current lcw (EF007050): 2 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 On-off switch
Catalog Number
255905
Model Code
P3-100/I5-RT-NA
EAN
4015082559052
Product Length/Depth
162 mm
Product Height
280 mm
Product Width
200 mm
Product Weight
1.46 kg
Certifications
CSA Class No.: 3211-05
UL 60947-4-1
CSA-C22.2 No. 94
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60204
UL
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
UL Category Control No.: NLRV
IEC/EN 60947-3
CE
CSA
VDE 0660
