View larger
P1-40/V/SVB/HI11 199953 Y7-199953 EATON ELECTRIC P1-40/V/SVB/HI11
P1-40/V/SVB/HI11
199953
Y7-199953
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

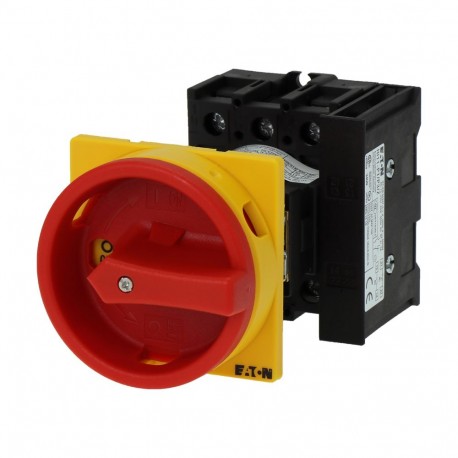

An Eaton Moeller P1-40/V/SVB/HI11 switch-disconnector acts as a primary disconnecting means to safely cut off electrical power to machinery during servicing or unexpected events. Panel builders routinely deploy these compact rotary switches inside enclosures for reliable circuit protection and local isolation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 40 A
- Rated permanent current at AC-23, 400 V (EF011777): 40 A
- Rated permanent current at AC-21, 400 V (EF009165): 40 A
- Rated operation power at AC-3, 400 V (EF001364): 15 kW
- Rated short-time withstand current lcw (EF007050): 0.64 kA
- Rated operation power at AC-23, 400 V (EF007027): 22 kW
- Switching power at 400 V (EF009166): 22 kW
- Conditioned rated short-circuit current Iq (EF001444): 80 kA
More info
▲General specifications
CE
IEC/EN 60947-3
IEC/EN 60204
