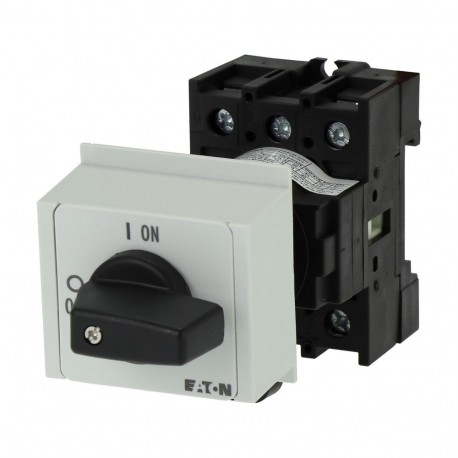

EATON - MOELLER P1-40/IVS P1-40/IVS 199931 Y7-199931 EATON ELECTRIC P1-40/IVS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-40/IVS 199931 Y7-199931 EATON ELECTRIC P1-40/IVS

P1-40/IVS

199931

Y7-199931

EATON - MOELLER

1 Pcs.

P1-40/IVS Eaton Moeller® series P1 On-Off switch, 40 A, service distribution board mounting, 3 pole, with black thumb grip and front plate On-Off switch, P1, Rated uninterrupted current (Iu): 40 A, Fitted with: Black thumb grip and front plate, Auxiliary contact, Mounting method: Service distribution board mounting, Number of poles: Three-pole, Degree of Protection: IP30

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
199931
Model Code
P1-40/IVS
EAN
4015082953508
Product Length/Depth
90 mm
Product Height
70 mm
Product Width
54 mm
Product Weight
0.153 kg
Compliances
UKCA
CE
Certifications
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 199931 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 40 A
Rated permanent current at AC-23, 400 V (EF011777) 40 A
Rated permanent current at AC-21, 400 V (EF009165) 40 A
Rated operation power at AC-3, 400 V (EF001364) 15 kW
Rated short-time withstand current lcw (EF007050) 0.64 kA
Rated operation power at AC-23, 400 V (EF007027) 22 kW
Switching power at 400 V (EF009166) 22 kW
Conditioned rated short-circuit current Iq (EF001444) 80 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Short thumb-grip
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP30
Width (EF000008) 54 mm
Height (EF000040) 70 mm
Depth (EF000049) 90 mm
