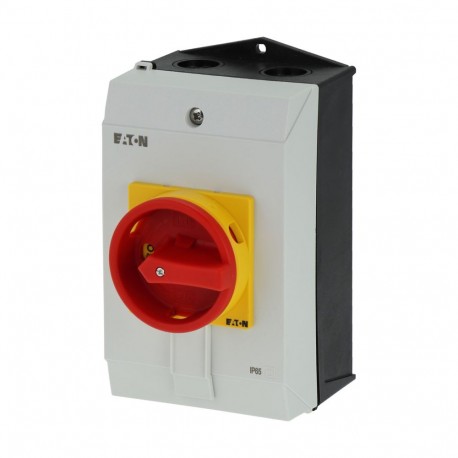

An Eaton Moeller series P1 main switch combines dependable load isolation with integrated emergency switching capabilities, enclosed in a robust polycarbonate housing for demanding industrial environments.
Enclosed main switches are regularly deployed near heavy machinery to offer immediate, highly visible power interruption points that protect both operators and equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Name: Eaton Moeller® series P1 Main switch
- Catalog Number: 199924
- Model Code: P1-40/I2H/SVB/N
- EAN: 4015082953294
- Product Length/Depth: 115 mm
- Product Height: 180 mm
- Product Width: 100 mm
- Product Weight: 0.586 kg
- Compliances: UKCA CE
- Certifications: IEC/EN 60947 IEC/EN 60947-3 IEC/EN 60204
- Catalog Notes: Rated Short-time Withstand Current (Icw) for a time of 1 second
- Enclosure material: Polycarbonate
- Fitted with:: Red rotary handle and yellow locking ring Auxiliary contact
- Functions: Emergency switching off function Interlockable
- Locking facility: Lockable in the 0 (Off) position
- Number of poles: 3+N
More info
▲General specifications
| Product Name | Eaton Moeller® series P1 Main switch |
| Catalog Number | 199924 |
| Model Code | P1-40/I2H/SVB/N |
| EAN | 4015082953294 |
| Product Length/Depth | 115 mm |
| Product Height | 180 mm |
| Product Width | 100 mm |
| Product Weight | 0.586 kg |
| Compliances | UKCA CE |
| Certifications | IEC/EN 60947 IEC/EN 60947-3 IEC/EN 60204 |
| Catalog Notes | Rated Short-time Withstand Current (Icw) for a time of 1 second |
Features & Functions
| Enclosure material | Polycarbonate |
| Features | Version as main switch Version as maintenance-/service switch Version as emergency stop installation |
| Fitted with: | Red rotary handle and yellow locking ring Auxiliary contact |
| Functions | Emergency switching off function Interlockable |
| Locking facility | Lockable in the 0 (Off) position |
| Number of poles | 3+N |
General information
| Accessories | Auxiliary contact fitted by user. |
| Degree of protection | IP65 NEMA Other |
| Degree of protection (front side) | IP65 |
| Lifespan, mechanical | 300,000 Operations |
| Mounting method | Surface mounting |
| Mounting position | As required |
| Operating frequency | 50 Operations/h |
| Overvoltage category | III |
| Pollution degree | 3 |
| Product Category | Main switch |
| Product Category | Main switch |
| Rated impulse withstand voltage (Uimp) | 6000 V AC |
| Safe isolation | 440 V AC, Between the contacts, According to EN 61140 |
| Shock resistance | 15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms |
| Switching angle | 90 ° |
Climatic environmental conditions
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 40 °C |
| Ambient operating temperature (enclosed) - min | -25 °C |
| Ambient operating temperature (enclosed) - max | 40 °C |
| Climatic proofing | Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30 |
Terminal capacities
| Terminal capacity | 1 x (1 - 4) mm², flexible with ferrules to DIN 46228 2 x (1 - 4) mm², flexible with ferrules to DIN 46228 1 x 10 mm² with fork terminal 2 x 10 mm² with fork terminal |
| Screw size | M4, Terminal screw |
| Tightening torque | 1.6 Nm, Screw terminals |
Electrical rating
| Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3) | 290 kA |
| Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3) | 130 kA |
| Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V | 30 A |
| Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V | 30 A |
| Rated operational current (Ie) at AC-3, 660 V, 690 V | 17 A |
| Rated operational current (Ie) at AC-21, 440 V | 40 A |
| Rated operational current (Ie) at AC-23A, 230 V | 40 A |
| Rated operational current (Ie) at AC-23A, 400 V, 415 V | 40 A |
| Rated operational current (Ie) at AC-23A, 690 V | 20 A |
| Rated operational power at AC-3, 380/400 V, 50 Hz | 15 kW |
| Rated operational power at AC-3, 415 V, 50 Hz | 15 kW |
| Rated operational power at AC-3, 690 V, 50 Hz | 15 kW |
| Rated operational power at AC-23A, 220/230 V, 50 Hz | 11 kW |
| Rated operational power at AC-23A, 400 V, 50 Hz | 22 kW |
| Rated operational power at AC-23A, 690 V, 50 Hz | 18.5 kW |
| Rated operational voltage (Ue) at AC - max | 690 V |
| Rated uninterrupted current (Iu) | 40 A |
| Uninterrupted current | Rated uninterrupted current Iu is specified for max. cross-section. |
Short-circuit rating
| Rated conditional short-circuit current (Iq) | 80 kA |
| Rated short-time withstand current (Icw) | 0.64 kA 640 A, Contacts, 1 second |
| Short-circuit protection rating | 50 A gG/gL, Fuse, Contacts |
Switching capacity
| Load rating | 1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor) 1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor) 2 x Iₑ (with intermittent operation class 12, 25 % duty factor) |
Contacts
| Control circuit reliability | 1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA) |
| Number of auxiliary contacts (change-over contacts) | 0 |
| Number of auxiliary contacts (normally closed contacts) | 0 |
| Number of auxiliary contacts (normally open contacts) | 0 |
Actuator
| Actuator color | Red |
| Actuator type | Door coupling rotary drive |
Design verification
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 3.5 W |
| Rated operational current for specified heat dissipation (In) | 40 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | UV resistance only in connection with protective shield. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
