EATON - MOELLER P1-40/I2H-RT/N P1-40/I2H-RT/N 199929 Y7-199929 EATON ELECTRIC P1-40/I2H-RT/N View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-40/I2H-RT/N 199929 Y7-199929 EATON ELECTRIC P1-40/I2H-RT/N

P1-40/I2H-RT/N

199929

Y7-199929

EATON - MOELLER

1 Pcs.

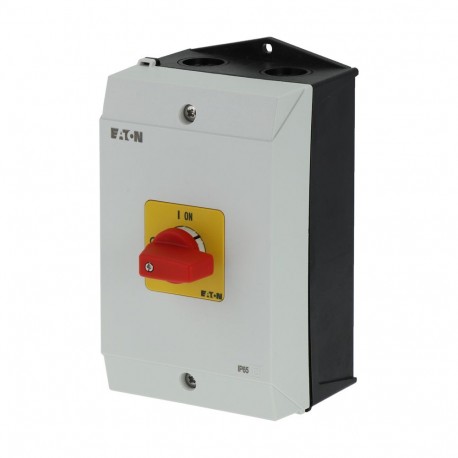

P1-40/I2H-RT/N Eaton Moeller® series P1 On-Off switch, 40 A, surface mounting, 3 pole + N, Emergency switching off function, with red thumb grip and yellow front plate, hard knockout version On-Off switch, P1, Rated uninterrupted current (Iu): 40 A, Functions: Emergency switching off function, Fitted with: Red thumb grip and yellow front plate, Auxiliary contact, Mounting method: Surface mounting, Number of poles: Three-pole + N, Degree of Protection: IP65

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller P1-40/I2H-RT/N is an enclosed industrial switch designed to interrupt electrical currents safely while providing local isolation for motors and machinery. Enclosed disconnect switches are mounted near equipment to grant operators immediate access for safe lockout-tagout procedures.

Final pricing, availability, and lead times are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 40 A
  • Rated permanent current at AC-23, 400 V (EF011777): 40 A
  • Rated permanent current at AC-21, 400 V (EF009165): 40 A
  • Rated operation power at AC-3, 400 V (EF001364): 15 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 22 kW
  • Switching power at 400 V (EF009166): 22 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
199929
Model Code
P1-40/I2H-RT/N
EAN
4015082953416
Product Length/Depth
107 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.564 kg
Compliances
UKCA
CE
Certifications
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
