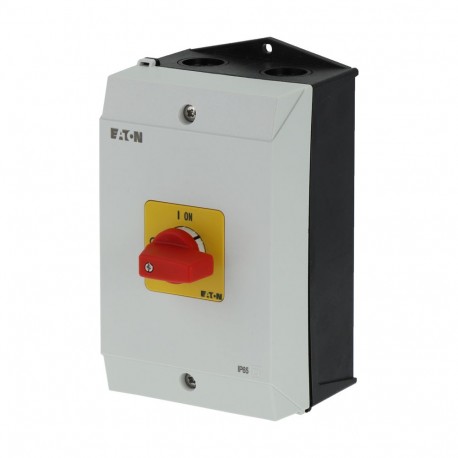

EATON - MOELLER P1-40/I2H-RT P1-40/I2H-RT 199928 Y7-199928 EATON ELECTRIC P1-40/I2H-RT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-40/I2H-RT 199928 Y7-199928 EATON ELECTRIC P1-40/I2H-RT

P1-40/I2H-RT

199928

Y7-199928

EATON - MOELLER

1 Pcs.

P1-40/I2H-RT Eaton Moeller® series P1 On-Off switch, 40 A, surface mounting, 3 pole, Emergency switching off function, with red thumb grip and yellow front plate, hard knockout version On-Off switch, P1, Rated uninterrupted current (Iu): 40 A, Functions: Emergency switching off function, Fitted with: Red thumb grip and yellow front plate, Auxiliary contact, Mounting method: Surface mounting, Number of poles: Three-pole, Degree of Protection: IP65

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A P1-40/I2H-RT 199928 Y7-199928 EATON ELECTRIC P1-40/I2H-RT serves as a versatile enclosed switch unit engineered for safe local motor control and manual circuit isolation. Panel builders and plant engineers deploy these devices to safely disconnect sub-systems during active maintenance procedures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 40 A
  • Rated permanent current at AC-23, 400 V (EF011777): 40 A
  • Rated permanent current at AC-21, 400 V (EF009165): 40 A
  • Rated operation power at AC-3, 400 V (EF001364): 15 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 22 kW
  • Switching power at 400 V (EF009166): 22 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
199928
Model Code
P1-40/I2H-RT
EAN
4015082953409
Product Length/Depth
107 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.534 kg
Compliances
UKCA
CE
Certifications
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
