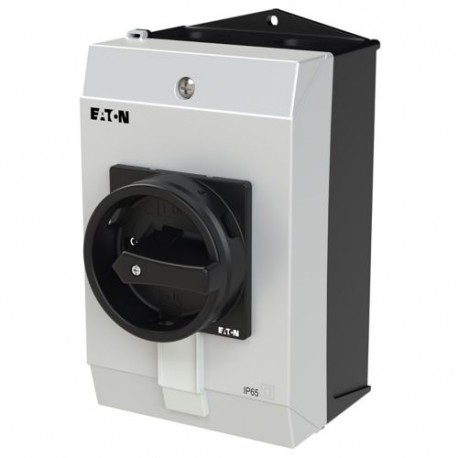

EATON - MOELLER P1-40/I2H/MBS/SVB-SW P1-40/I2H/MBS/SVB-SW 199919 Y7-199919 EATON ELECTRIC P1-40/I2H/MBS/SVB-SW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-40/I2H/MBS/SVB-SW 199919 Y7-199919 EATON ELECTRIC P1-40/I2H/MBS/SVB-SW

P1-40/I2H/MBS/SVB-SW

199919

Y7-199919

EATON - MOELLER

1 Pcs.

P1-40/I2H/MBS/SVB-SW Eaton Moeller® series P1 Main switch, 40 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, hard knockout version, with assembly sheet screen Main switch, P1, Rated uninterrupted current (Iu): 40 A, Functions: STOP function, Interlockable, Fitted with: Black rotary handle and locking ring, Assembly sheet screen, Auxiliary contact, Mounting method: Surface mounting, Number of poles: Three-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller enclosed switch unit, part number P1-40/I2H/MBS/SVB-SW, functions as a primary load-break switch and circuit disconnector for industrial machinery and commercial installations. These devices are mounted in protective housings to allow safe manual operation and lockout capabilities directly at the point of application.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 40 A
  • Rated permanent current at AC-23, 400 V (EF011777): 40 A
  • Rated permanent current at AC-21, 400 V (EF009165): 40 A
  • Rated operation power at AC-3, 400 V (EF001364): 15 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 22 kW
  • Switching power at 400 V (EF009166): 22 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
199919
Model Code
P1-40/I2H/MBS/SVB-SW
EAN
4015082953447
Product Length/Depth
116 mm
Product Height
181 mm
Product Width
100 mm
Product Weight
0.656 kg
Compliances
UKCA
CE
Certifications
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
