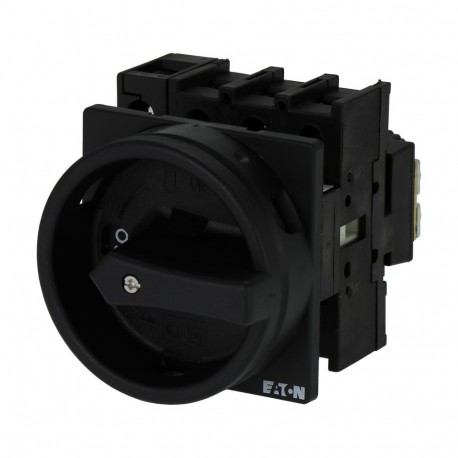

EATON - MOELLER P1-40/EA/SVB-SW/HI11 P1-40/EA/SVB-SW/HI11 199899 Y7-199899 EATON ELECTRIC P1-40/EA/SVB-SW/HI11 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-40/EA/SVB-SW/HI11 199899 Y7-199899 EATON ELECTRIC P1-40/EA/SVB-SW/HI11

P1-40/EA/SVB-SW/HI11

199899

Y7-199899

EATON - MOELLER

1 Pcs.

P1-40/EA/SVB-SW/HI11 Eaton Moeller® series P1 Main switch, 40 A, flush mounting, 3 pole, 1 N/O, 1 N/C, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position Main switch, P1, Rated uninterrupted current (Iu): 40 A, Functions: STOP function, Interlockable, Fitted with: Black rotary handle and locking ring, Mounting method: Flush mounting, Number of poles: Three-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
199899
Model Code
P1-40/EA/SVB-SW/HI11
EAN
4015082953157
Product Length/Depth
120 mm
Product Height
70 mm
Product Width
65 mm
Product Weight
0.381 kg
Compliances
UKCA
CE
Certifications
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 199899 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 40 A
Rated permanent current at AC-23, 400 V (EF011777) 40 A
Rated permanent current at AC-21, 400 V (EF009165) 40 A
Rated operation power at AC-3, 400 V (EF001364) 15 kW
Rated short-time withstand current lcw (EF007050) 0.64 kA
Rated operation power at AC-23, 400 V (EF007027) 22 kW
Switching power at 400 V (EF009166) 22 kW
Conditioned rated short-circuit current Iq (EF001444) 80 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 1
Number of auxiliary contacts as normally open contact (EF001376) 1
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Door coupling rotary drive
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Width (EF000008) 65 mm
Height (EF000040) 70 mm
Depth (EF000049) 120 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
