P1-40/EA/SVB-SW 199898 Y7-199898 EATON ELECTRIC P1-40/EA/SVB-SW
P1-40/EA/SVB-SW
199898
Y7-199898
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

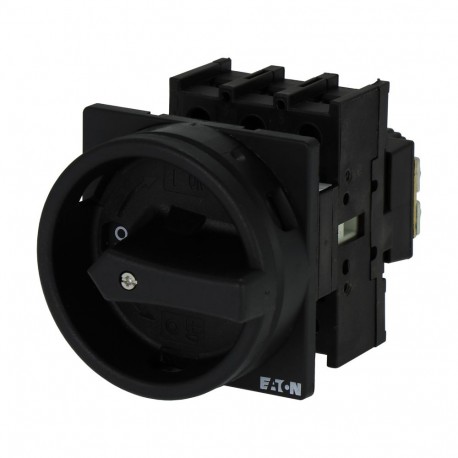

Eaton Moeller P1-40/EA/SVB-SW is a rotary switch designed to safely isolate power to machinery and industrial control panels during maintenance or emergency interventions. Devices of this type are routinely installed across commercial and manufacturing setups to interrupt electrical circuits reliably under load.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 40 A
- Rated permanent current at AC-23, 400 V (EF011777): 40 A
- Rated permanent current at AC-21, 400 V (EF009165): 40 A
- Rated operation power at AC-3, 400 V (EF001364): 15 kW
- Rated short-time withstand current lcw (EF007050): 0.64 kA
- Rated operation power at AC-23, 400 V (EF007027): 22 kW
- Switching power at 400 V (EF009166): 22 kW
- Conditioned rated short-circuit current Iq (EF001444): 80 kA
More info
▲General specifications
CE
IEC/EN 60947-3
IEC/EN 60204
