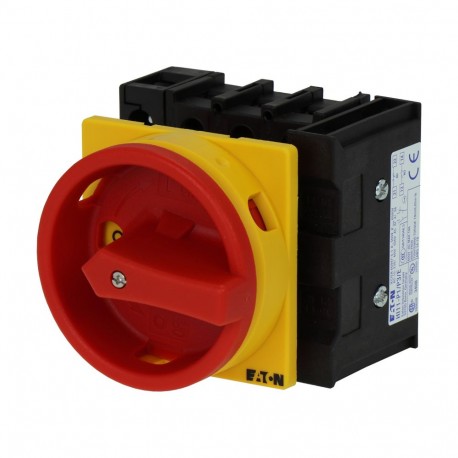

P1-40/EA/SVB/N/HI11 199897 Y7-199897 EATON ELECTRIC P1-40/EA/SVB/N/HI11
P1-40/EA/SVB/N/HI11
199897
Y7-199897
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller On-Off switch is engineered for reliable manual circuit control and secure electrical isolation across various industrial applications. These versatile control devices are commonly integrated into machinery panels to manage operational power feeds and ensure technician safety.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 40 A
- Rated permanent current at AC-23, 400 V (EF011777): 40 A
- Rated permanent current at AC-21, 400 V (EF009165): 40 A
- Rated operation power at AC-3, 400 V (EF001364): 15 kW
- Rated short-time withstand current lcw (EF007050): 0.64 kA
- Rated operation power at AC-23, 400 V (EF007027): 22 kW
- Switching power at 400 V (EF009166): 22 kW
- Conditioned rated short-circuit current Iq (EF001444): 80 kA
More info
▲General specifications
CE
IEC/EN 60947-3
IEC/EN 60204
