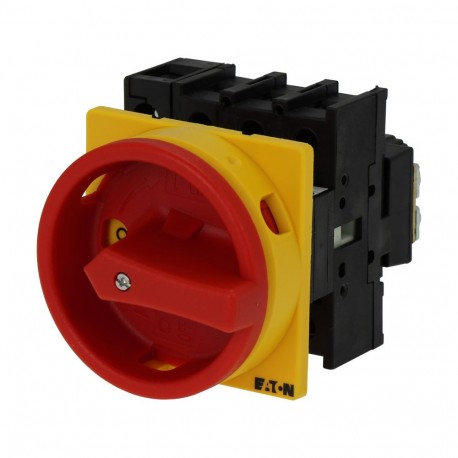

EATON - MOELLER P1-40/EA/SVB/N P1-40/EA/SVB/N 199896 Y7-199896 EATON ELECTRIC P1-40/EA/SVB/N View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-40/EA/SVB/N 199896 Y7-199896 EATON ELECTRIC P1-40/EA/SVB/N

P1-40/EA/SVB/N

199896

Y7-199896

EATON - MOELLER

1 Pcs.

P1-40/EA/SVB/N Eaton Moeller® series P1 Main switch, 40 A, flush mounting, 3 pole + N, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position Main switch, P1, Rated uninterrupted current (Iu): 40 A, Functions: Emergency switching off function, Interlockable, Fitted with: Red rotary handle and yellow locking ring, Auxiliary contact, Mounting method: Flush mounting, Number of poles: Three-pole + N, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller P1-40/EA/SVB/N switch functions as a robust main and maintenance controller designed to interrupt electrical power securely in commercial and industrial installations. Such switches prevent accidental machine startup during service periods, ensuring full workplace safety compliance.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 40 A
  • Rated permanent current at AC-23, 400 V (EF011777): 40 A
  • Rated permanent current at AC-21, 400 V (EF009165): 40 A
  • Rated operation power at AC-3, 400 V (EF001364): 15 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 22 kW
  • Switching power at 400 V (EF009166): 22 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
199896
Model Code
P1-40/EA/SVB/N
EAN
4015082953126
Product Length/Depth
120 mm
Product Height
70 mm
Product Width
65 mm
Product Weight
0.271 kg
Compliances
UKCA
CE
Certifications
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
