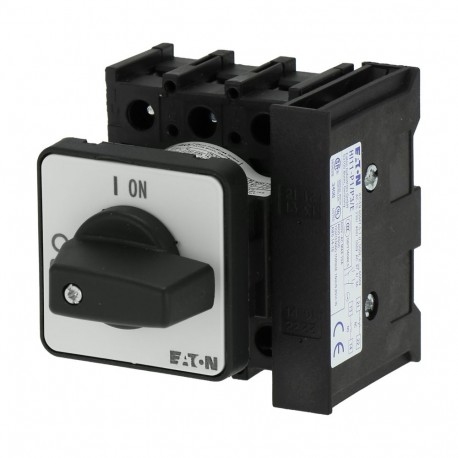

EATON - MOELLER P1-40/E/HI11 P1-40/E/HI11 199890 Y7-199890 EATON ELECTRIC P1-40/E/HI11 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-40/E/HI11 199890 Y7-199890 EATON ELECTRIC P1-40/E/HI11

P1-40/E/HI11

199890

Y7-199890

EATON - MOELLER

1 Pcs.

P1-40/E/HI11 Eaton Moeller® series P1 On-Off switch, 40 A, flush mounting, 3 pole, 1 N/O, 1 N/C, with black thumb grip and front plate On-Off switch, P1, Rated uninterrupted current (Iu): 40 A, Fitted with: Black thumb grip and front plate, Mounting method: Flush mounting, Number of poles: Three-pole, Degree of Protection: IP65

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Heavy-duty electrical installations rely on industrial switches like this Eaton Moeller unit to manage high current loads and provide dependable manual circuit disconnecting during operational adjustments. These devices form an essential layer of manual control inside power distribution enclosures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 40 A
  • Rated permanent current at AC-23, 400 V (EF011777): 40 A
  • Rated permanent current at AC-21, 400 V (EF009165): 40 A
  • Rated operation power at AC-3, 400 V (EF001364): 15 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 22 kW
  • Switching power at 400 V (EF009166): 22 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
199890
Model Code
P1-40/E/HI11
EAN
4015082953317
Product Length/Depth
75 mm
Product Height
70 mm
Product Width
49 mm
Product Weight
0.183 kg
Compliances
UKCA
CE
Certifications
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
