P1-40/E 199889 Y7-199889 EATON ELECTRIC P1-40/E
P1-40/E
199889
Y7-199889
EATON - MOELLER
1 Pcs.
P1-40/E

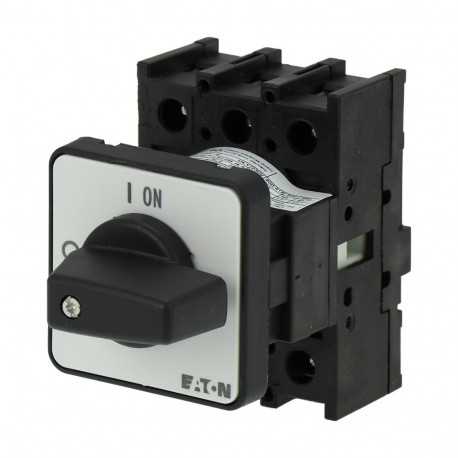

Eaton Moeller® series P1 On-Off switch, 40 A, flush mounting, 3 pole, with black thumb grip and front plate
On-Off switch, P1, Rated uninterrupted current (Iu): 40 A, Fitted with: Black thumb grip and front plate, Auxiliary contact, Mounting method: Flush mounting, Number of poles: Three-pole, Degree of Protection: IP65
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller P1-40/E switch acts as a reliable manual control device for managing power distribution loops within machinery and automation enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 40 A
- Rated permanent current at AC-23, 400 V (EF011777): 40 A
- Rated permanent current at AC-21, 400 V (EF009165): 40 A
- Rated operation power at AC-3, 400 V (EF001364): 15 kW
- Rated short-time withstand current lcw (EF007050): 0.64 kA
- Rated operation power at AC-23, 400 V (EF007027): 22 kW
- Switching power at 400 V (EF009166): 22 kW
- Conditioned rated short-circuit current Iq (EF001444): 80 kA
More info
▲General specifications
Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
199889
Model Code
P1-40/E
EAN
4015082953300
Product Length/Depth
95 mm
Product Height
70 mm
Product Width
49 mm
Product Weight
0.143 kg
Compliances
UKCA
CE
CE
Certifications
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947-3
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
