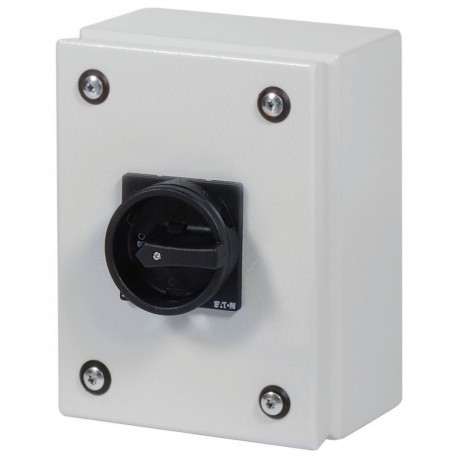

P1-32/SE1/SVB-SW 197357 EATON ELECTRIC General Switch. 32A. surface mounting. 3p. Stop function.
P1-32/SE1/SVB-SW
197357
Y7-197357
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller P1-32/SE1/SVB-SW general switch is an electrical control device designed to isolate power safely across industrial machinery and distribution boards. Units of this type provide reliable manual switching for operational control, maintenance routines, or emergency power termination within demanding commercial setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-23, 400 V (EF011777): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 13 kW
- Rated short-time withstand current lcw (EF007050): 0.64 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 80 kA
More info
▲General specifications
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
Features & Functions
Version as main switch
STOP function
General
Climatic environmental conditions
Terminal capacities
1 x (1.5 - 6) mm², solid or stranded
1 x (1 - 4) mm², flexible with ferrules to DIN 46228
2 x (1.5 - 6) mm², solid or stranded
1.6 Nm, Screw terminals
Electrical rating
Short-circuit rating
640 A, Contacts, 1 second
Switching capacity
2 x Iₑ (with intermittent operation class 12, 25 % duty factor)
1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor)
