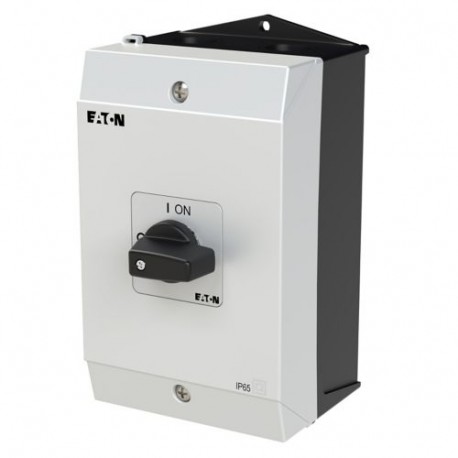

EATON - MOELLER P1-32/I2H/N P1-32/I2H/N 227869 Y7-227869 EATON ELECTRIC On-Off switch, 3 pole + N, 32 A, surface mounting, hard knockout.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/I2H/N 227869 Y7-227869 EATON ELECTRIC On-Off switch, 3 pole + N, 32 A, surface mounting, hard knockout..

P1-32/I2H/N

227869

Y7-227869

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole + N, 32 A, surface mounting, hard knockout version P1-32/I2H/N Eaton Moeller® series P1 On-Off switch, P1, 32 A, surface mounting, 3 pole + N, with black thumb grip and front plate, hard knockout version On-Off switch, P1, Rated uninterrupted current (Iu): 32 A, Fitted with: Black thumb grip and front plate, Mounting method: Surface mounting, Number of poles: Four-pole, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller P1-32/I2H/N on-off switch is a surface-mounted rotary control device built to manage power flow and isolate electrical circuits in industrial setups. These switches offer dependable manual switching capabilities for motor control and distribution tasks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 13 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
227869
Model Code
P1-32/I2H/N
EAN
4015082278694
Product Length/Depth
107 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.452 kg
Certifications
CSA-C22.2 No. 94
IEC/EN 60204
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
UL
IEC/EN 60947
IEC/EN 60947-3
CSA File No.: 012528
UL 60947-4-1
CE
CSA
UL File No.: E36332
VDE 0660
CSA Class No.: 3211-05
