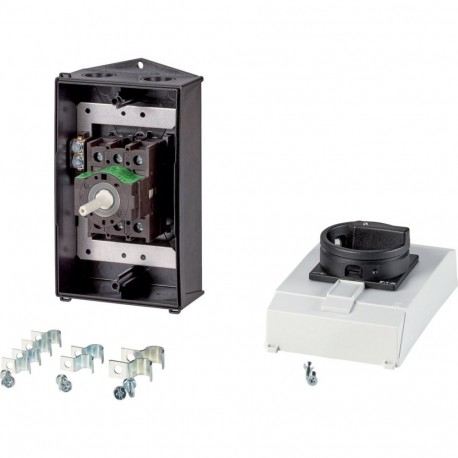

P1-32/I2H/MBS/SVB-SW 182418 0001400419 EATON ELECTRIC Main switch, 3p,32A,controlled stop function, lockable..
P1-32/I2H/MBS/SVB-SW
182418
Y7-182418
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A P1-32/I2H/MBS/SVB-SW Eaton Electric main switch is built with a controlled stop function and a lockable design to ensure operator safety during machine servicing. These devices are commonly installed on industrial machinery panels to act as the primary disconnect for electrical feeds.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-23, 400 V (EF011777): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 13 kW
- Rated short-time withstand current lcw (EF007050): 0.64 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 80 kA
More info
▲General specifications
IEC/EN 60947
IEC/EN 60204
VDE 0660
