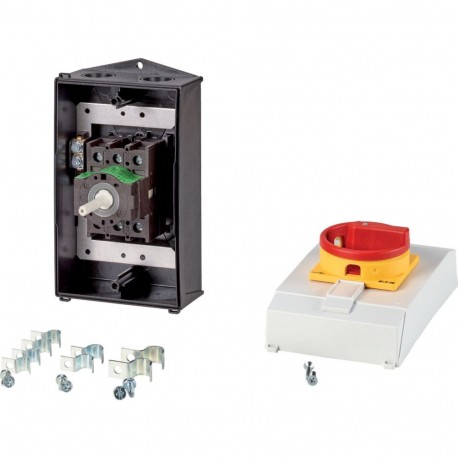

EATON - MOELLER P1-32/I2H/MBS/SVB P1-32/I2H/MBS/SVB 182417 Y7-182417 EATON ELECTRIC Main switch, 3p,32A, Emergency-Stop function, lockable in .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/I2H/MBS/SVB 182417 Y7-182417 EATON ELECTRIC Main switch, 3p,32A, Emergency-Stop function, lockable in ..

P1-32/I2H/MBS/SVB

182417

Y7-182417

EATON - MOELLER

1 Pcs.

Main switch, 3p,32A, Emergency-Stop function, lockable in the 0 (Off) position, surface mounting, hard knockout version, with mounting plate screen P1-32/I2H/MBS/SVB Eaton Moeller® series P1 Main switch, P1, 32 A, surface mounting, 3 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position, hard knockout version, with assembly sheet screen Main switch, P1, Rated uninterrupted current (Iu): 32 A, Functions: Interlockable, Emergency switching off function, Fitted with: Assembly sheet screen, Red rotary handle and yellow locking ring, Mounting method: Surface mounting, Number of poles: Three-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 12 , Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
182417
Model Code
P1-32/I2H/MBS/SVB
EAN
4015081773435
Product Length/Depth
116 mm
Product Height
181 mm
Product Width
100 mm
Product Weight
0.543 kg
Certifications
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
IEC/EN 60204

ETIM for 182417 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) Yes
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 32 A
Rated permanent current at AC-23, 400 V (EF011777) 32 A
Rated permanent current at AC-21, 400 V (EF009165) 32 A
Rated operation power at AC-3, 400 V (EF001364) 13 kW
Rated short-time withstand current lcw (EF007050) 0.64 kA
Rated operation power at AC-23, 400 V (EF007027) 15 kW
Switching power at 400 V (EF009166) 15 kW
Conditioned rated short-circuit current Iq (EF001444) 80 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Complete device in housing
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Red
Type of control element (EF006976) Door coupling rotary drive
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 100 mm
Height (EF000040) 181 mm
Depth (EF000049) 116 mm
