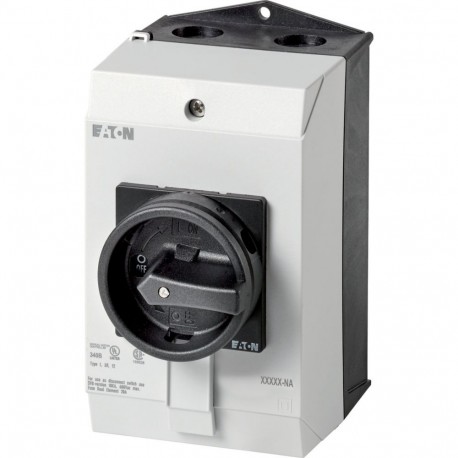

EATON - MOELLER P1-32/I2/SVB-SW-NA P1-32/I2/SVB-SW-NA 255892 Y7-255892 EATON ELECTRIC Main switch, P1, 32 A, surface mounting, 3 pole, STOP fun.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/I2/SVB-SW-NA 255892 Y7-255892 EATON ELECTRIC Main switch, P1, 32 A, surface mounting, 3 pole, STOP fun..

P1-32/I2/SVB-SW-NA

255892

Y7-255892

EATON - MOELLER

1 Pcs.

Main switch, P1, 32 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, UL/CSA P1-32/I2/SVB-SW-NA Eaton Moeller® series P1 Main switch, P1, 32 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, UL/CSA Main switch, P1, Rated uninterrupted current (Iu): 32 A, Functions: Interlockable, STOP function, Fitted with: Black rotary handle and locking ring, Mounting method: Surface mounting, Number of poles: Three-pole, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller P1-32/I2/SVB-SW-NA provides surface-mounted main switching capabilities with a secure locking handle for industrial panel interfaces. Operators rely on this hardware style to safely disconnect power locally during maintenance routines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 13 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
255892
Model Code
P1-32/I2/SVB-SW-NA
EAN
4015082558925
Product Length/Depth
115 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.443 kg
Certifications
CSA File No.: 012528
CSA
VDE 0660
IEC/EN 60947
IEC/EN 60947-3
UL File No.: E36332
CSA Class No.: 3211-05
CSA-C22.2 No. 94
IEC/EN 60204
CE
UL 60947-4-1
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
UL
