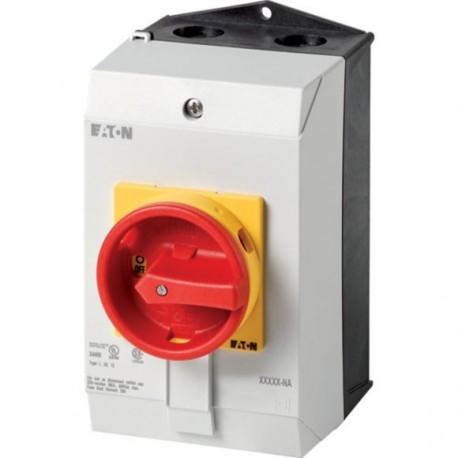

EATON - MOELLER P1-32/I2/SVB-NA P1-32/I2/SVB-NA 255891 Y7-255891 EATON ELECTRIC Main switch, P1, 32 A, surface mounting, 3 pole, Emergency s.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/I2/SVB-NA 255891 Y7-255891 EATON ELECTRIC Main switch, P1, 32 A, surface mounting, 3 pole, Emergency s..

P1-32/I2/SVB-NA

255891

Y7-255891

EATON - MOELLER

1 Pcs.

Main switch, P1, 32 A, surface mounting, 3 pole, Emergency switching off function, With red rotary handle and yellow locking ring, UL/CSA P1-32/I2/SVB-NA Main switch, P1, Rated uninterrupted current (Iu): 32 A, Functions: Interlockable, Emergency switching off function, Fitted with: Red rotary handle and yellow locking ring, Mounting method: Surface mounting, Number of poles: Three-pole, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller P1-32/I2/SVB-NA main switch is engineered for surface mounting and provides reliable manual disconnection and emergency switching functionality for industrial machinery. Such components ensure compliance with safety standards by cutting off power to specific operational zones.

Specific pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 13 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
255891
Model Code
P1-32/I2/SVB-NA
EAN
4015082558918
Product Length/Depth
115 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.513 kg
Certifications
UL
IEC/EN 60947-3
UL Category Control No.: NLRV
CSA
IEC/EN 60947
CSA File No.: 012528
CSA-C22.2 No. 94
CE
UL 60947-4-1
CSA Class No.: 3211-05
VDE 0660
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
