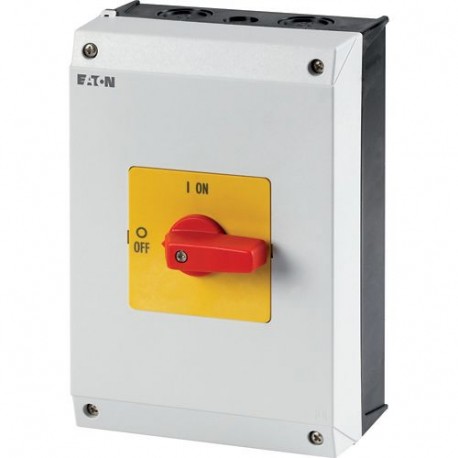

P1-32/I1-RT 233994 Y7-233994 EATON ELECTRIC On-Off switch, 3 pole, 32 A, Emergency-Stop function, surface mo..
P1-32/I1-RT
233994
Y7-233994
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for surface mounting, the P1-32/I1-RT 233994 Y7-233994 EATON ELECTRIC On-Off switch acts as a reliable control mechanism for electrical loads within industrial environments. Rotary switches are commonly utilized on machine housings and control stations to govern power flow safely during routine operations.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-23, 400 V (EF011777): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 13 kW
- Rated short-time withstand current lcw (EF007050): 0.64 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 80 kA
More info
▲General specifications
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3
