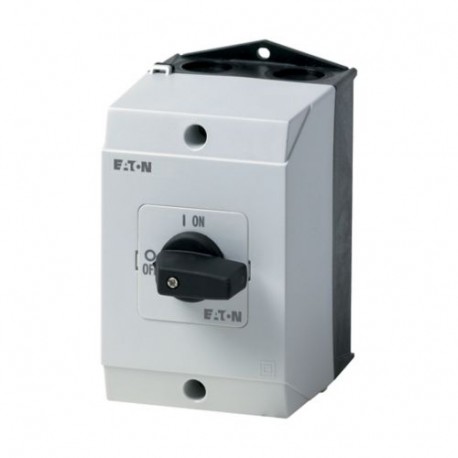

EATON - MOELLER P1-32/I1 P1-32/I1 233992 Y7-233992 EATON ELECTRIC On-Off switch, 3 pole, 32 A, surface mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/I1 233992 Y7-233992 EATON ELECTRIC On-Off switch, 3 pole, 32 A, surface mounting

P1-32/I1

233992

Y7-233992

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole, 32 A, surface mounting P1-32/I1 Eaton Moeller® series P1 On-Off switch, 3 pole, 32 A, surface mounting P1-32/I1 On-Off switch, P1, Rated uninterrupted current (Iu): 32 A, Fitted with: Black thumb grip and front plate, Mounting method: Surface mounting, Number of poles: Three-pole, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller P1-32/I1 on-off switch provides dependable manual control and circuit interruption for industrial machinery and commercial installations. Surface-mounted on-off switches allow operators to locally energize or de-energize electrical equipment safely during routine operation and service routines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 13 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
233992
Model Code
P1-32/I1
EAN
4015082339920
Product Length/Depth
107 mm
Product Height
137 mm
Product Width
80 mm
Product Weight
0.319 kg
Certifications
VDE 0660
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
