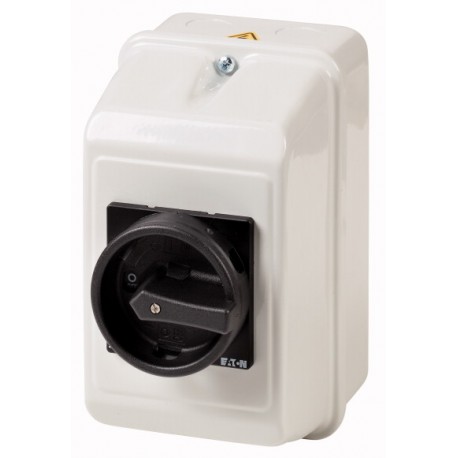

EATON - MOELLER P1-25/ST/SVB-SW P1-25/ST/SVB-SW 201714 Y7-201714 EATON ELECTRIC Main switch, +steel enclosure, 3p, 25A, handle black, lockab.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/ST/SVB-SW 201714 Y7-201714 EATON ELECTRIC Main switch, +steel enclosure, 3p, 25A, handle black, lockab..

P1-25/ST/SVB-SW

201714

Y7-201714

EATON - MOELLER

1 Pcs.

Main switch, +steel enclosure, 3p, 25A, handle black, lockable Circuit breaker; 3 pole; 25A; Mounting box; Lever Black; Lockable in the 0 position (OFF) of the steel Main switch/switch-disconnector on-off according to IEC/EN 60947-3, 690V/25A in the steel sheet enclosure, degree of protection Front IP65, handle black with black locking collar, lockable with 3 padlocks, switch-disconnectors P1 have a very compact and robust design. The manual drive act directly to the connection of the contacts. The contacts are forced open when switching off. Design general: insulating material-surface mounting enclosure, flush mounting, center mounting, rear mounting, IVS service distribution board mounting

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller main switch housed in a protective steel enclosure safely cuts off power to industrial machinery to prevent accidental startup during servicing. Enclosed disconnectors are widely installed directly adjacent to heavy equipment for immediate access by operators. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Motor drive optional (EF007386): No
  • Motor drive integrated (EF006697): No
  • Voltage release optional (EF007491): No
  • Suitable for front mounting 4-hole (EF007247): No
  • Suitable for front mounting centre (EF007248): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Interlockable (EF006281): No
  • With pre-assembled cabling (EF016444): No
  • Width (EF000008): 104 mm
  • Height (EF000040): 176 mm

More info

▲
Main switch, +steel enclosure, 3p, 25A, handle black, lockable
Main switch/switch-disconnector on-off according to IEC/EN 60947-3, 690V/25A in the steel sheet enclosure, degree of protection Front IP65, handle black with black locking collar, lockable with 3 padlocks, switch-disconnectors P1 have a very compact and robust design. The manual drive act directly to the connection of the contacts. The contacts are forced open when switching off. Design general: insulating material-surface mounting enclosure, flush mounting, centre mounting, rear mounting, IVS service distribution board mounting

Dimensions


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
