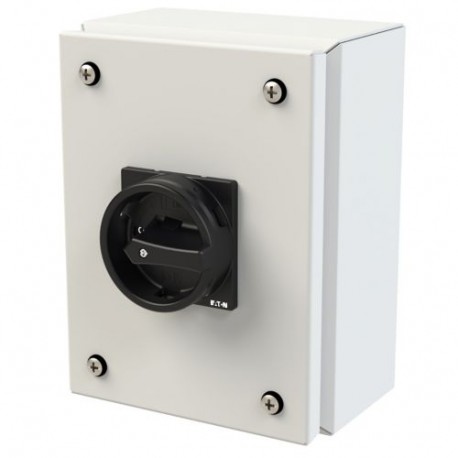

P1-25/SE1/SVB-SW/N 197351 Y7-197351 EATON ELECTRIC P1-25/SE1/SVB-SW/N
P1-25/SE1/SVB-SW/N
197351
Y7-197351
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller P1-25/SE1/SVB-SW/N is a multi-pole industrial switch disconnector utilized to safely isolate electrical circuits during maintenance, servicing, or emergency procedures in commercial and factory automation setups. These rotary switches provide reliable load-break capabilities and manual control to prevent accidental equipment startup.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 25 A
- Rated permanent current at AC-23, 400 V (EF011777): 25 A
- Rated permanent current at AC-21, 400 V (EF009165): 25 A
- Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
- Rated short-time withstand current lcw (EF007050): 0.64 kA
- Rated operation power at AC-23, 400 V (EF007027): 13 kW
- Switching power at 400 V (EF009166): 11 kW
- Conditioned rated short-circuit current Iq (EF001444): 50 kA
More info
▲General specifications
IEC/EN 60947
IEC/EN 60204
IEC/EN 60947-3
Features & Functions
Version as main switch
Interlockable
General
Climatic environmental conditions
Terminal capacities
2 x (1.5 - 6) mm², solid or stranded
2 x (1 - 4) mm², flexible with ferrules to DIN 46228
1 x (1 - 4) mm², flexible with ferrules to DIN 46228
14 Nm, Screw terminals
Electrical rating
Short-circuit rating
640 A, Contacts, 1 second
Switching capacity
2 x Iₑ (with intermittent operation class 12, 25 % duty factor)
1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor)
