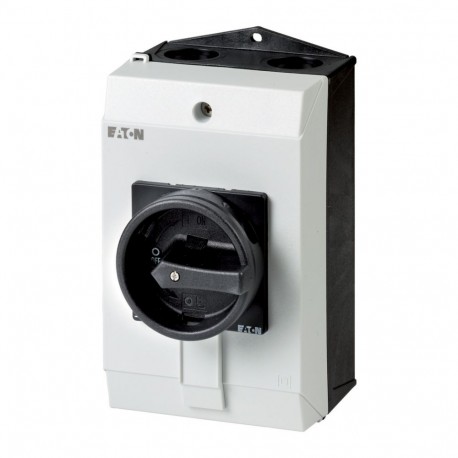

EATON - MOELLER P1-25/I2H/SVB-SW/N P1-25/I2H/SVB-SW/N 227863 Y7-227863 EATON ELECTRIC Main switch, 3 pole + N, 25 A, STOP function, Lockable in.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/I2H/SVB-SW/N 227863 Y7-227863 EATON ELECTRIC Main switch, 3 pole + N, 25 A, STOP function, Lockable in..

P1-25/I2H/SVB-SW/N

227863

Y7-227863

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + N, 25 A, STOP function, Lockable in the 0 (Off) position, surface mounting, hard knockout version P1-25/I2H/SVB-SW/N Eaton Moeller® series P1 Main switch, P1, 25 A, surface mounting, 3 pole + N, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, hard knockout version Main switch, P1, Rated uninterrupted current (Iu): 25 A, Functions: Interlockable, STOP function, Fitted with: Black rotary handle and locking ring, Mounting method: Surface mounting, Number of poles: Four-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
227863
Model Code
P1-25/I2H/SVB-SW/N
EAN
4015082278632
Product Length/Depth
115 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.485 kg
Certifications
CSA-C22.2 No. 94
IEC/EN 60947-3
UL Category Control No.: NLRV
UL File No.: E36332
CSA
CE
IEC/EN 60947
UL 60947-4-1
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
UL
VDE 0660
CSA Class No.: 3211-05

ETIM for 227863 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 25 A
Rated permanent current at AC-23, 400 V (EF011777) 25 A
Rated permanent current at AC-21, 400 V (EF009165) 25 A
Rated operation power at AC-3, 400 V (EF001364) 7.5 kW
Rated short-time withstand current lcw (EF007050) 0.64 kA
Rated operation power at AC-23, 400 V (EF007027) 13 kW
Switching power at 400 V (EF009166) 13 kW
Conditioned rated short-circuit current Iq (EF001444) 80 kA
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Complete device in housing
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Door coupling rotary drive
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 100 mm
Height (EF000040) 180 mm
Depth (EF000049) 115 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
