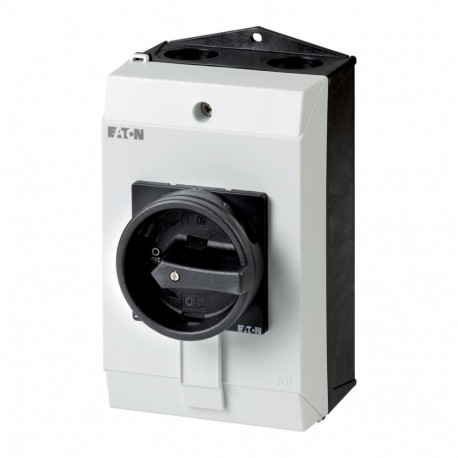

EATON - MOELLER P1-25/I2H/SVB-SW P1-25/I2H/SVB-SW 227861 Y7-227861 EATON ELECTRIC Main switch, 3 pole, 25 A, Emergency stop function, Lockabl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/I2H/SVB-SW 227861 Y7-227861 EATON ELECTRIC Main switch, 3 pole, 25 A, Emergency stop function, Lockabl..

P1-25/I2H/SVB-SW

227861

Y7-227861

EATON - MOELLER

1 Pcs.

Main switch, 3 pole, 25 A, Emergency stop function, Lockable in the 0 (Off) position, surface mounting, hard knockout version P1-25/I2H/SVB-SW Eaton Moeller® series P1 Main switch, P1, 25 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, hard knockout version Main switch, P1, Rated uninterrupted current (Iu): 25 A, Functions: STOP function, Interlockable, Fitted with: Black rotary handle and locking ring, Mounting method: Surface mounting, Number of poles: Three-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered with an integrated emergency stop function, the Eaton Moeller P1-25/I2H/SVB-SW main switch delivers reliable power disconnection for industrial machines. Main switches are installed near machinery entry points to ensure operator safety during maintenance work.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 25 A
  • Rated permanent current at AC-23, 400 V (EF011777): 25 A
  • Rated permanent current at AC-21, 400 V (EF009165): 25 A
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 13 kW
  • Switching power at 400 V (EF009166): 13 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
227861
Model Code
P1-25/I2H/SVB-SW
EAN
4015082278618
Product Length/Depth
115 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.455 kg
Certifications
CE
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
IEC/EN 60947
CSA-C22.2 No. 94
CSA File No.: 012528
CSA Class No.: 3211-05
UL
CSA
UL File No.: E36332
VDE 0660
UL Category Control No.: NLRV
IEC/EN 60204
