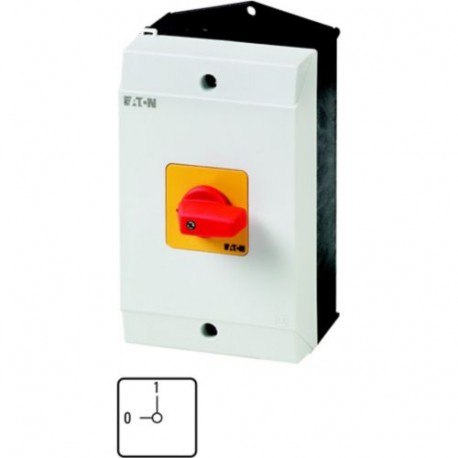

EATON - MOELLER P1-25/I2H-RT/N P1-25/I2H-RT/N 227865 Y7-227865 EATON ELECTRIC On-Off switch, 3 pole + N, 25 A, Emergency-Stop function, sur.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/I2H-RT/N 227865 Y7-227865 EATON ELECTRIC On-Off switch, 3 pole + N, 25 A, Emergency-Stop function, sur..

P1-25/I2H-RT/N

227865

Y7-227865

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole + N, 25 A, Emergency-Stop function, surface mounting, hard knockout version P1-25/I2H-RT/N Eaton Moeller® series P1 On-Off switch, P1, 25 A, surface mounting, 3 pole + N, Emergency switching off function, with red thumb grip and yellow front plate, hard knockout version On-Off switch, P1, Rated uninterrupted current (Iu): 25 A, Functions: Emergency switching off function, Fitted with: Red thumb grip and yellow front plate, Mounting method: Surface mounting, Number of poles: Four-pole, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

P1-25/I2H-RT/N 227865 Y7-227865 EATON ELECTRIC On-Off switch, 3 pole + N, 25 A, Emergency-Stop function, sur.. from Eaton Moeller is an industrial on-off switch designed to safely interrupt power and support emergency stop protocols in machinery installations. Enclosed switching devices of this type are widely deployed on manufacturing floors to provide local manual disconnection capabilities for motors and auxiliary equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 25 A
  • Rated permanent current at AC-23, 400 V (EF011777): 25 A
  • Rated permanent current at AC-21, 400 V (EF009165): 25 A
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 13 kW
  • Switching power at 400 V (EF009166): 13 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
227865
Model Code
P1-25/I2H-RT/N
EAN
4015082278656
Product Length/Depth
107 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.435 kg
Certifications
IEC/EN 60204
CSA
CSA File No.: 012528
UL 60947-4-1
UL Category Control No.: NLRV
IEC/EN 60947-3
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
IEC/EN 60947
VDE 0660
UL
UL File No.: E36332
CE
