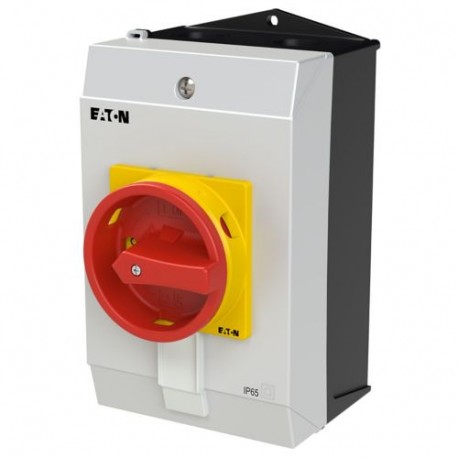

EATON - MOELLER P1-25/I2H/MBS/SVB P1-25/I2H/MBS/SVB 182413 Y7-182413 EATON ELECTRIC Main switch, 3p,25A,Emergency-Stop function,lockable in th.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/I2H/MBS/SVB 182413 Y7-182413 EATON ELECTRIC Main switch, 3p,25A,Emergency-Stop function,lockable in th..

P1-25/I2H/MBS/SVB

182413

Y7-182413

EATON - MOELLER

1 Pcs.

Main switch, 3p,25A,Emergency-Stop function,lockable in the 0 (Off) position, surface mounting, hard knockout version, with mounting plate screen P1-25/I2H/MBS/SVB Eaton Moeller® series P1 Main switch, P1, 25 A, surface mounting, 3 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position, hard knockout version, with assembly sheet screen Main switch, P1, Rated uninterrupted current (Iu): 25 A, Functions: Emergency switching off function, Interlockable, Fitted with: Assembly sheet screen, Red rotary handle and yellow locking ring, Mounting method: Surface mounting, Number of poles: Three-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 12 , Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller P1-25/I2H/MBS/SVB operates as a main switch equipped with an integrated emergency-stop function and padlock compatibility for lockout/tagout safety compliance. This configuration is widely implemented in industrial environments to secure electrical feeds and protect operators during machine maintenance.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 25 A
  • Rated permanent current at AC-23, 400 V (EF011777): 25 A
  • Rated permanent current at AC-21, 400 V (EF009165): 25 A
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 13 kW
  • Switching power at 400 V (EF009166): 13 kW
  • Conditioned rated short-circuit current Iq (EF001444): 50 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
182413
Model Code
P1-25/I2H/MBS/SVB
EAN
4015081773398
Product Length/Depth
116 mm
Product Height
181 mm
Product Width
100 mm
Product Weight
0.555 kg
Certifications
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
