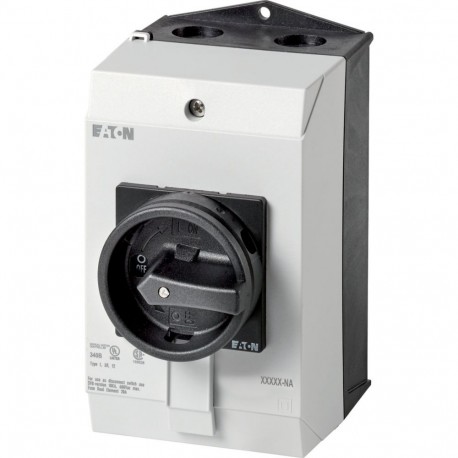

EATON - MOELLER P1-25/I2/SVB-SW-NA P1-25/I2/SVB-SW-NA 255885 Y7-255885 EATON ELECTRIC Main switch, P1, 25 A, surface mounting, 3 pole, STOP fun.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/I2/SVB-SW-NA 255885 Y7-255885 EATON ELECTRIC Main switch, P1, 25 A, surface mounting, 3 pole, STOP fun..

P1-25/I2/SVB-SW-NA

255885

Y7-255885

EATON - MOELLER

1 Pcs.

Main switch, P1, 25 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, UL/CSA P1-25/I2/SVB-SW-NA Eaton Moeller® series P1 Main switch, P1, 25 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, UL/CSA Main switch, P1, Rated uninterrupted current (Iu): 25 A, Functions: STOP function, Interlockable, Fitted with: Black rotary handle and locking ring, Mounting method: Surface mounting, Number of poles: Three-pole, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Surface-mounted main switches like the P1-25/I2/SVB-SW-NA 255885 Y7-255885 EATON ELECTRIC Main switch, P1, 25 A, surface mounting, 3 pole, STOP fun.. deliver dependable circuit disconnection and load management right at equipment locations. These devices are deployed to isolate electrical loads safely during servicing or to halt machinery operations abruptly. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 25 A
  • Rated permanent current at AC-23, 400 V (EF011777): 25 A
  • Rated permanent current at AC-21, 400 V (EF009165): 25 A
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 13 kW
  • Switching power at 400 V (EF009166): 13 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
255885
Model Code
P1-25/I2/SVB-SW-NA
EAN
4015082558857
Product Length/Depth
115 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.455 kg
Certifications
CSA File No.: 012528
IEC/EN 60947
UL 60947-4-1
UL
VDE 0660
CSA-C22.2 No. 94
UL Category Control No.: NLRV
IEC/EN 60947-3
CSA
CSA Class No.: 3211-05
IEC/EN 60204
CE
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
